Ubiquiti USW-Ultra-60W Unifi Switch
Switch Ultra 60W for UniFi networks, featuring 8 GbE RJ45 ports, 60W adapter support, PoE switching, and versatile wall/desk/magnetic mounting.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

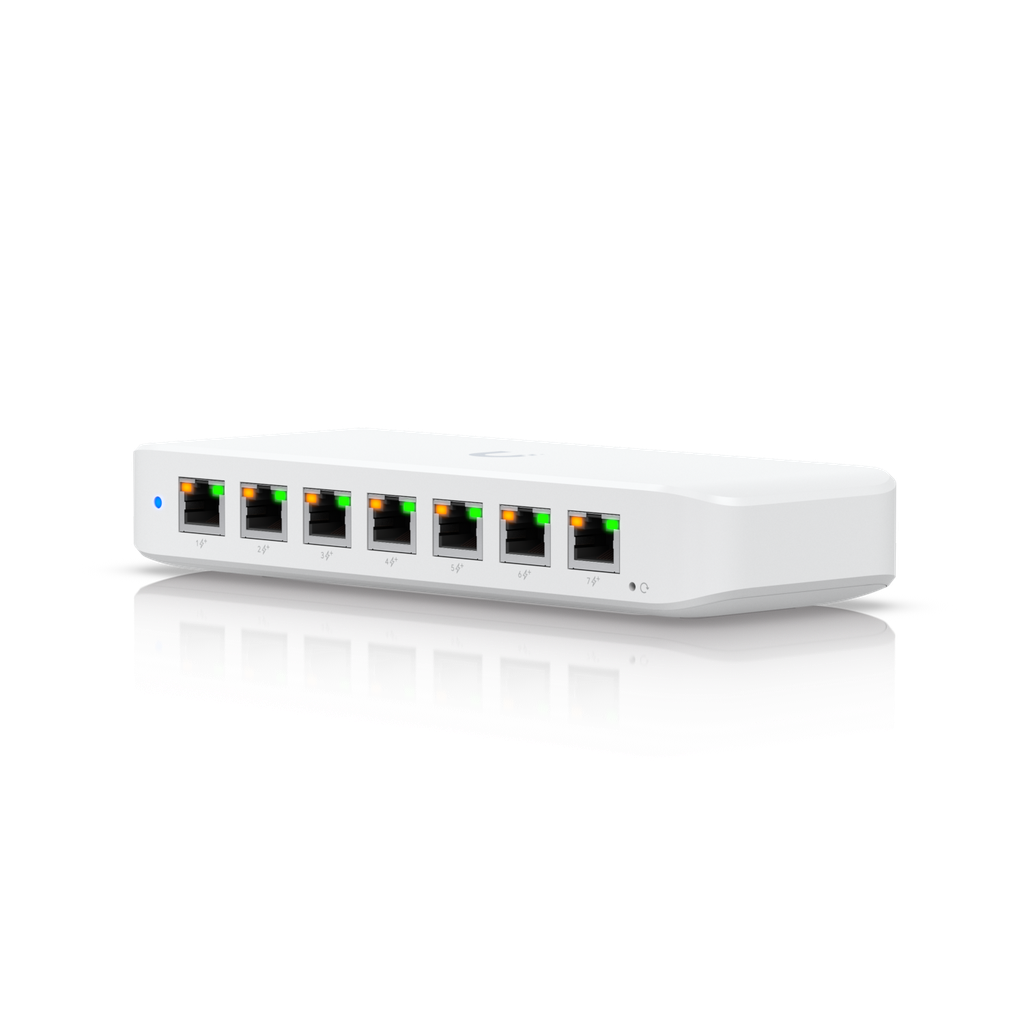

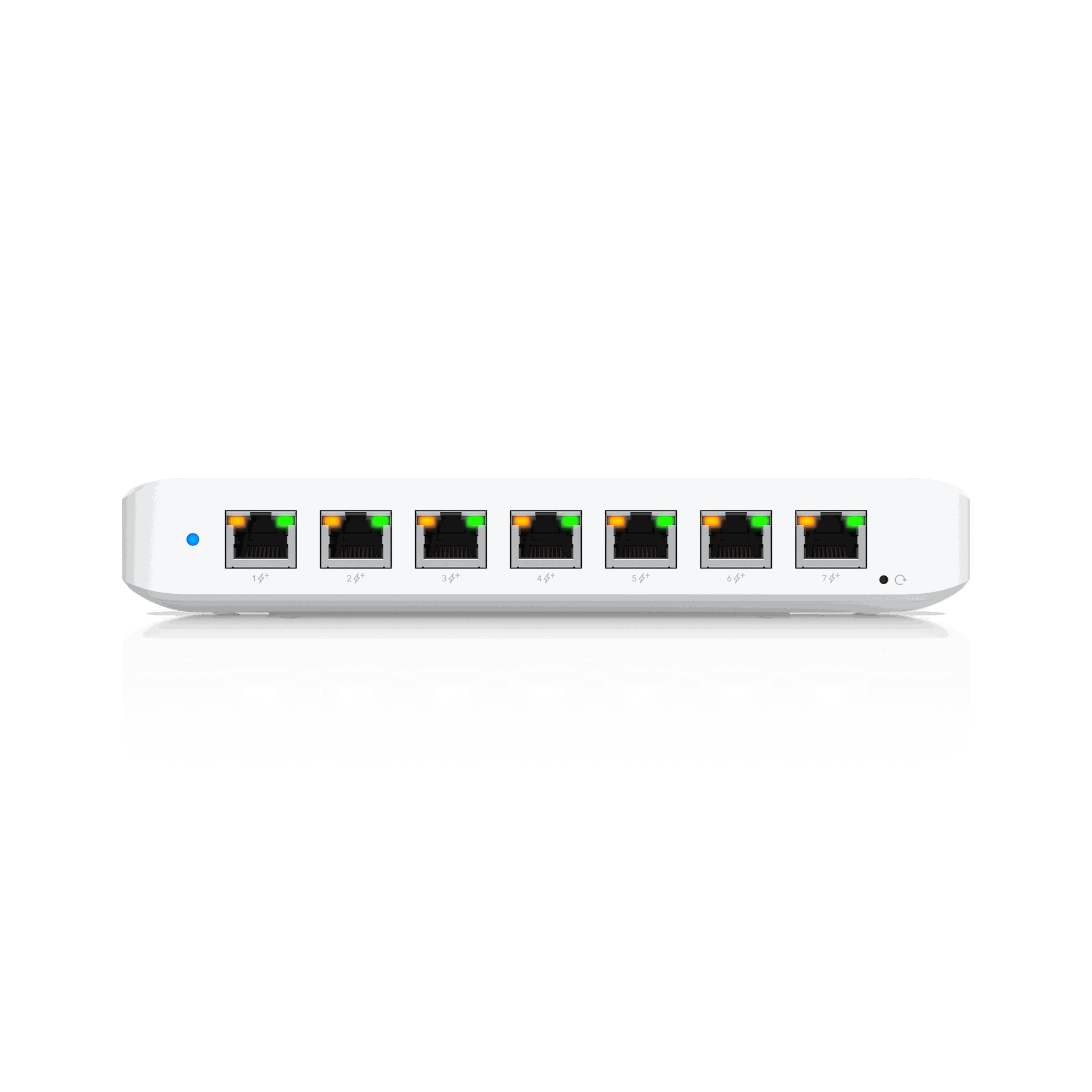

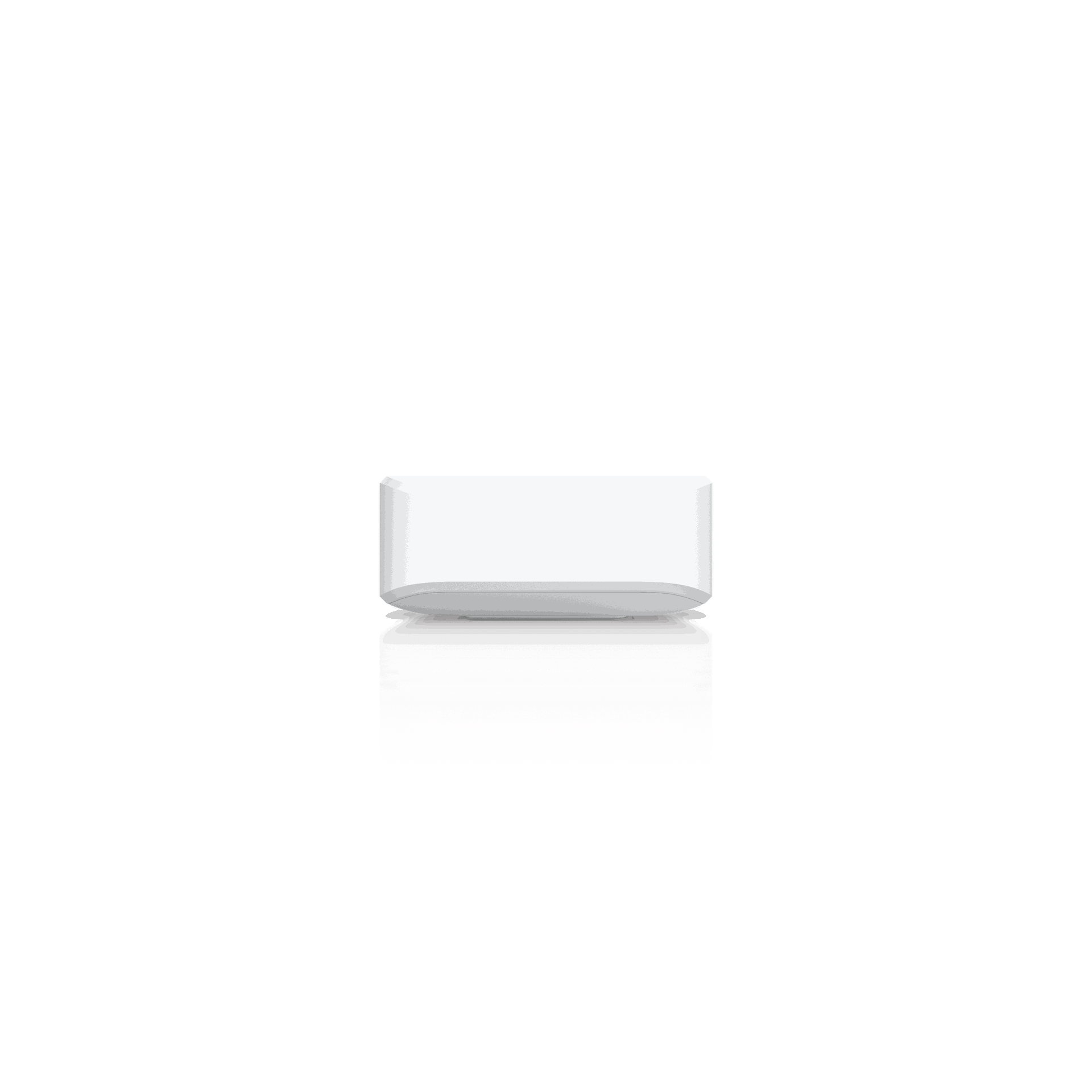

Ubiquiti USW-Ultra-60W UniFi Switch Ultra 60W
USW-Ultra-60W is a UniFi PoE switch for managed business networks, with 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports, 16 Gbps switching capacity, and PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W PoE availability.
Key Features
- A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- High-density switching with 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports.
- Performance designed for demanding UniFi networks, including 16 Gbps switching capacity.
- Integrated PoE support with PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W total PoE availability.
- Compact desktop, wall, magnetic form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 203 x 76 x 33 mm
- Weight: Device: 320 g; Wall mount: 45 g; Adapter: 330 g
- Connectivity: 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports
- Power method: (1) AC/DC adapter (Included); (1) PoE++
- Max. power consumption: 9W (Excluding PoE Output) with PoE input; 8W (Excluding PoE Output) with adapter input; 210W (Including PoE Output) with 210W AC adapter input
- PoE budget: PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W
- Switching capacity: 16 Gbps
- Total non-blocking throughput: 8 Gbps
- Forwarding rate: 12 Mpps
- Form factor / mounting: Compact desktop, wall, magnetic
- Operating temperature: PoE++ input: -30 to 60° C; 60W AC adapter input: -20 to 45° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 06367-24-08356
- Application requirements: Version 8.0.7 and later
- Supported VLANs: 256
- MAC Address Table Size: 4,000
