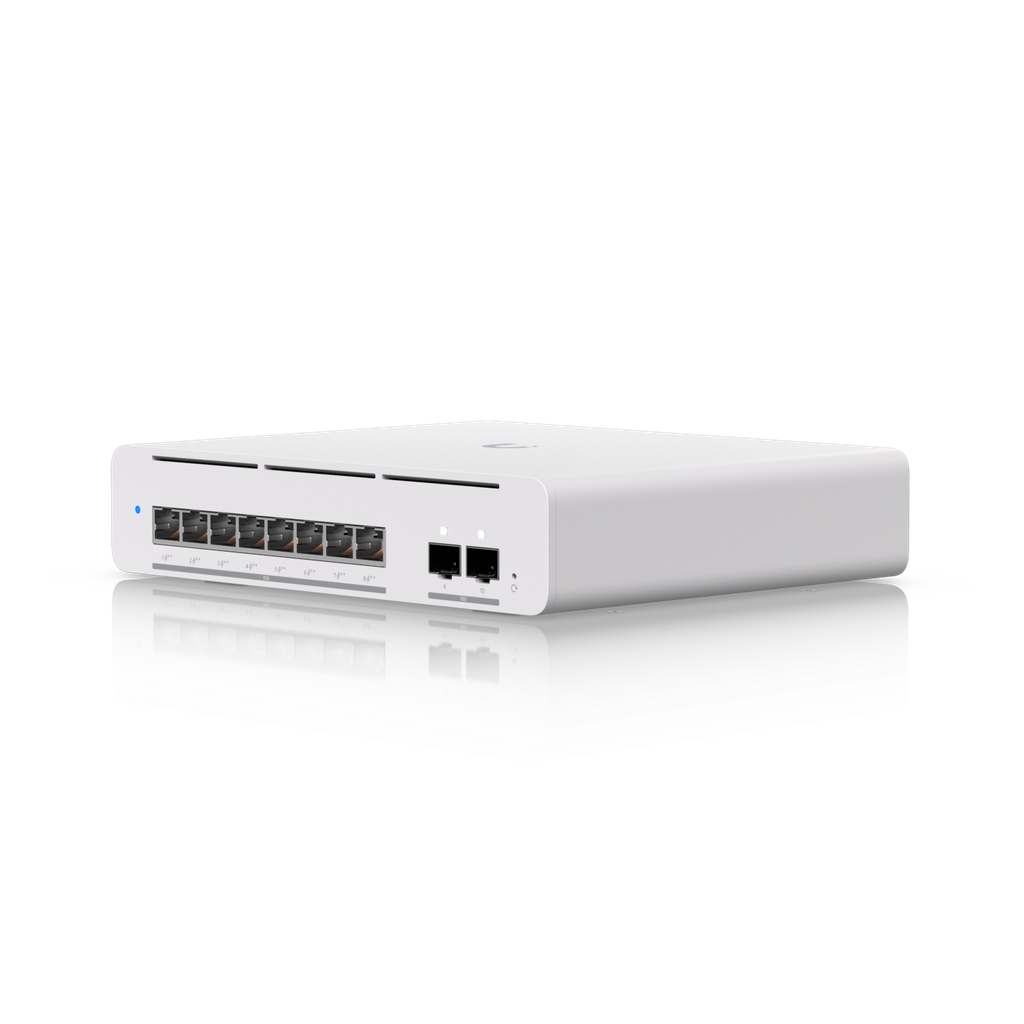

Ubiquiti USW-Pro-XG-8-PoE UniFi Professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE (2) 10G SFP+ ports.
Switch Pro XG 8 PoE for UniFi networks, featuring 8 (All PoE++) 10 GbE RJ45 ports, 2 10G SFP+ ports, 155W PoE availability, and 200 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Pro-XG-8-PoE UniFi Switch Pro XG 8 PoE
USW-Pro-XG-8-PoE is a UniFi PoE switch for managed business networks, with 8 (All PoE++) 10 GbE RJ45 ports, 2 10G SFP+ ports, 200 Gbps switching capacity, and 155W PoE availability.
Key Features
- Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
- High-density switching with 8 (All PoE++) 10 GbE RJ45 ports, 2 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 200 Gbps switching capacity.
- Integrated PoE support with 155W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 210.4 x 173.8 x 43.7 mm
- Weight: 1.6 kg
- Connectivity: 8 (All PoE++) 10 GbE RJ45 ports, 2 10G SFP+ ports
- Power method: AC/DC Adapter (included)
- Max. power consumption: 61W (Excluding PoE output); 210W (Including PoE output)
- PoE budget: 155W
- Switching capacity: 200 Gbps
- Total non-blocking throughput: 100 Gbps
- Forwarding rate: 149 Mpps
- Layer 3: Yes
- Form factor / mounting: Compact desktop, wall
- Operating temperature: -5 to 45° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 04322-25-08356
- Application requirements: Version 9.0.114 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
