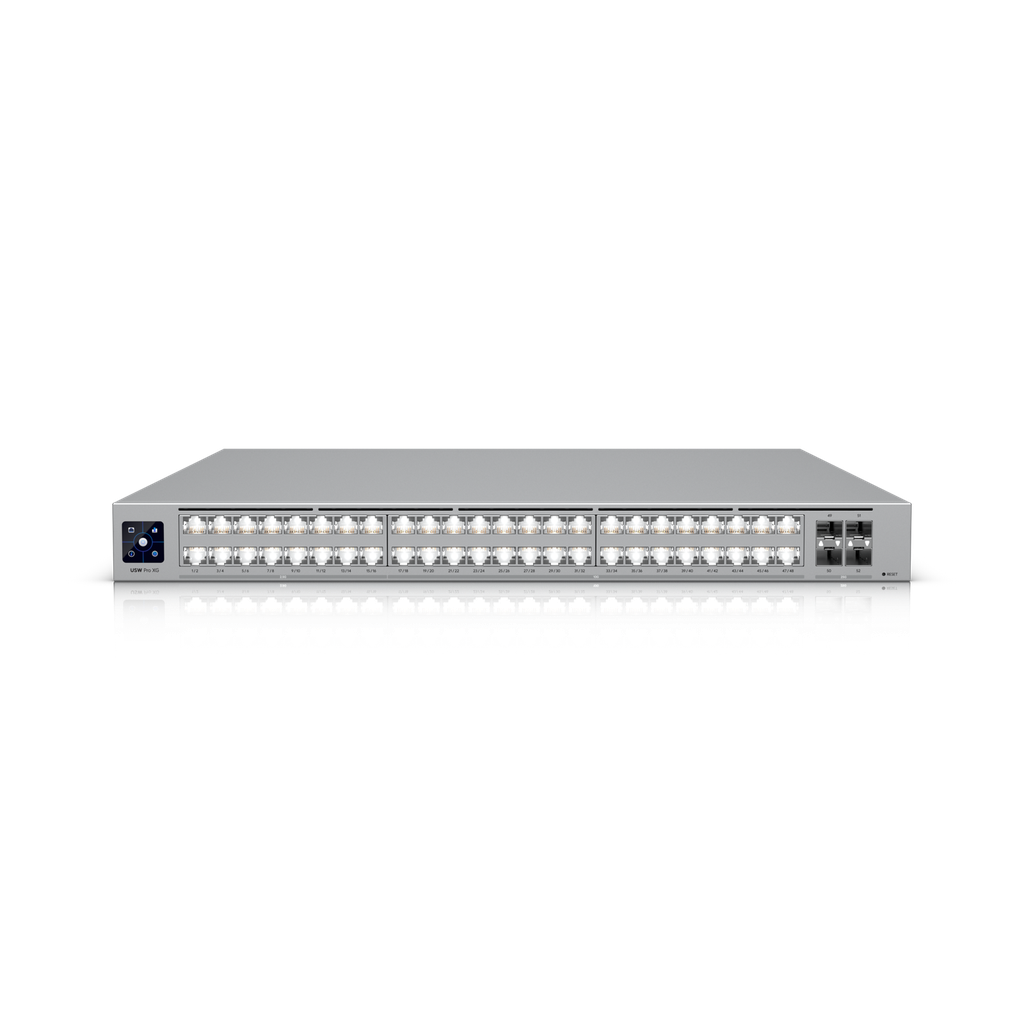

Ubiquiti USW-Pro-XG-48 UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE (4) 25G SFP28 ports
Switch Pro XG 48 for UniFi networks, featuring 16 2.5 GbE RJ45 ports, 32 10 GbE RJ45 ports, 4 25G SFP28 ports, and 920 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

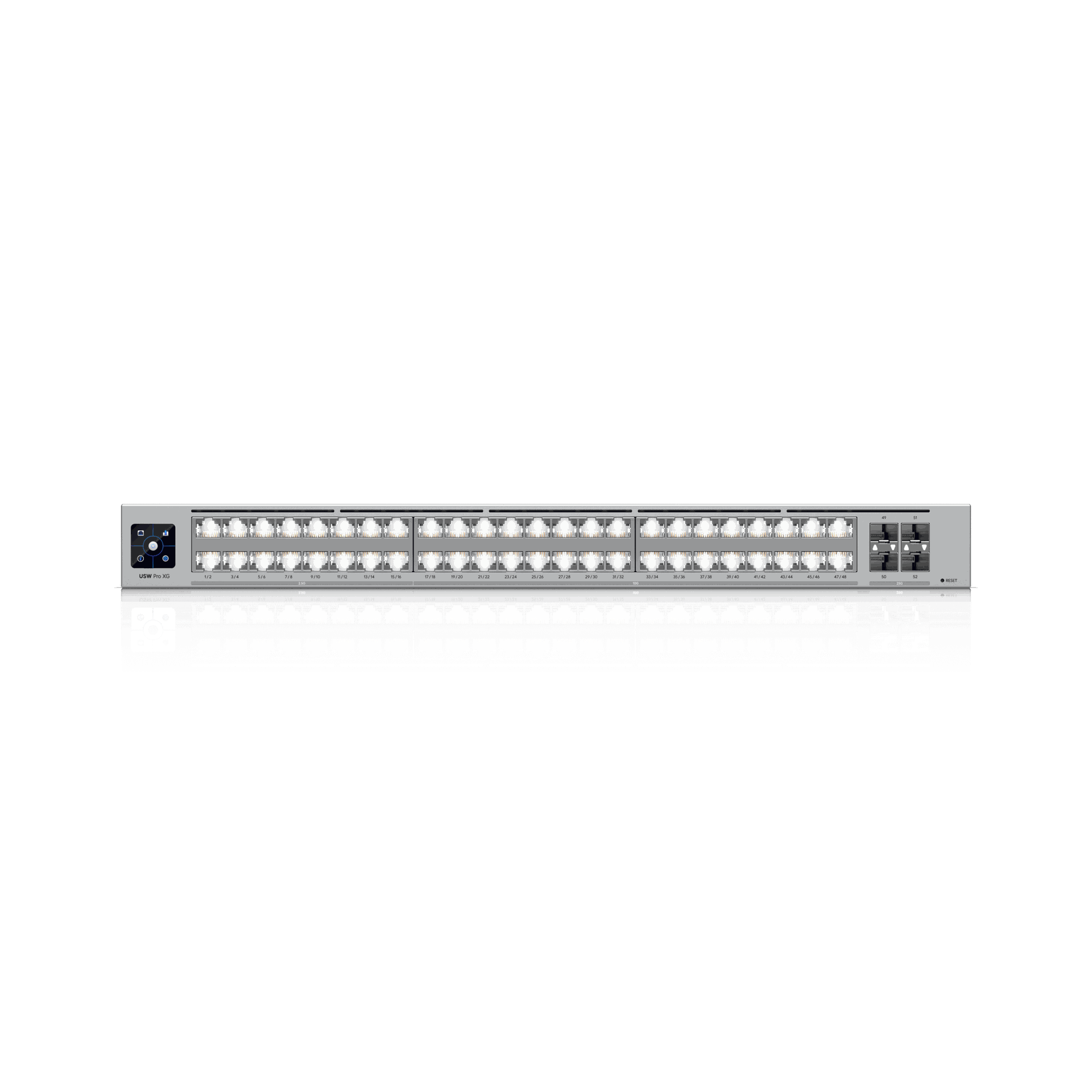

Ubiquiti USW-Pro-XG-48 UniFi Switch Pro XG 48
USW-Pro-XG-48 is a UniFi switch for managed business networks, with 16 2.5 GbE RJ45 ports, 32 10 GbE RJ45 ports, 4 25G SFP28 ports, 920 Gbps switching capacity.
Key Features
- Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
- High-density switching with 16 2.5 GbE RJ45 ports, 32 10 GbE RJ45 ports, 4 25G SFP28 ports.
- Performance designed for demanding UniFi networks, including 920 Gbps switching capacity.
- Layer 3 switching features for scalable UniFi network designs.
- Rack mount (1U) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 442 x 480 x 44 mm
- Weight: Without mounting brackets: 7.5 kg; With mounting brackets: 7.6 kg
- Connectivity: 16 2.5 GbE RJ45 ports, 32 10 GbE RJ45 ports, 4 25G SFP28 ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 250W
- Switching capacity: 920 Gbps
- Total non-blocking throughput: 460 Gbps
- Forwarding rate: 684 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 06464-25-08356
- Application requirements: Version 9.0.114 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 512
- Packet Buffer Size: 8 MB
- Redundancy: DC Power Backup (With UniFi RPS.)
