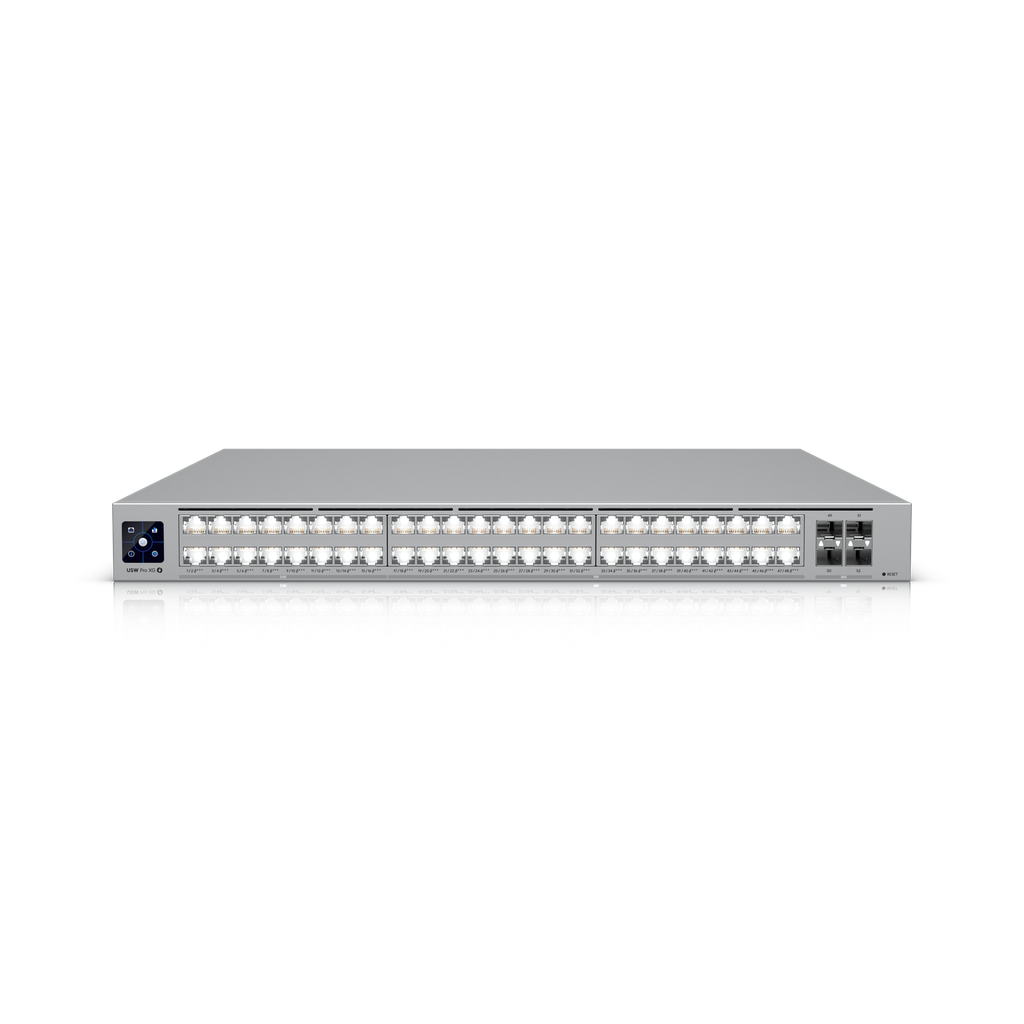

Ubiquiti USW-Pro-XG-48-PoE UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE (4) 25G SFP28 ports
Switch Pro XG 48 PoE for UniFi networks, featuring PoE switching, 920 Gbps switching capacity, and 200-240V AC: 1080W; 100-120V AC: 972W PoE availability.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

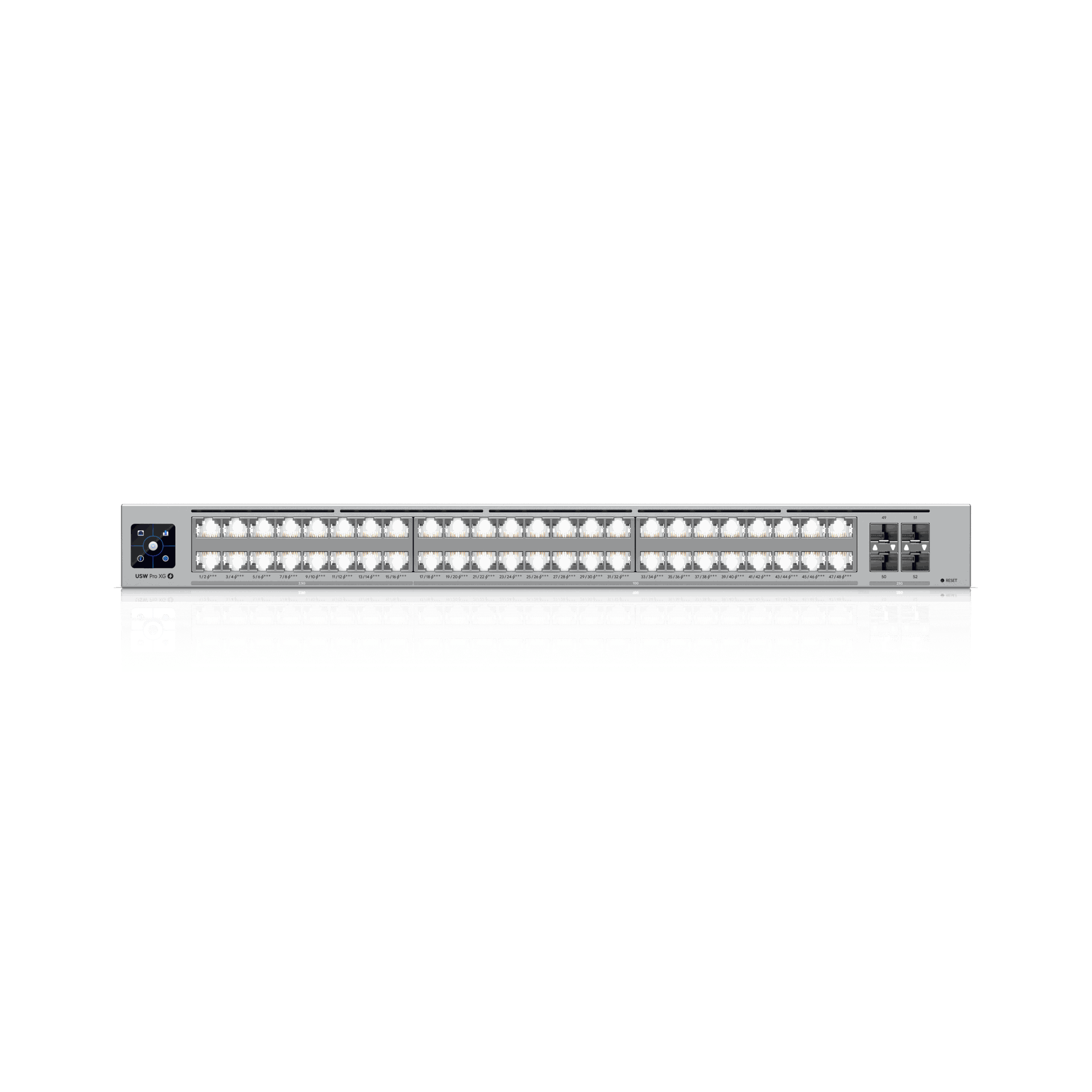

Ubiquiti USW-Pro-XG-48-PoE UniFi Switch Pro XG 48 PoE
USW-Pro-XG-48-PoE is a UniFi PoE switch for managed business networks, with 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports, 920 Gbps switching capacity, and 200-240V AC: 1080W; 100-120V AC: 972W PoE availability.
Key Features
- Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
- High-density switching with 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports.
- Performance designed for demanding UniFi networks, including 920 Gbps switching capacity.
- Integrated PoE support with 200-240V AC: 1080W; 100-120V AC: 972W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 442 x 480 x 44 mm
- Weight: Without mounting brackets: 8.7 kg; With mounting brackets: 8.8 kg
- Connectivity: 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 200W (Excluding PoE Output); 200-240V: 1,280W /; 100-120V AC: 1,172W (Including PoE Output)
- PoE budget: 200-240V AC: 1080W; 100-120V AC: 972W
- Switching capacity: 920 Gbps
- Total non-blocking throughput: 460 Gbps
- Forwarding rate: 684 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 04322-25-08356
- Application requirements: Version 9.1.120 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 512
- Packet Buffer Size: 8 MB
- Redundancy: DC Power Backup (With UniFi RPS)
