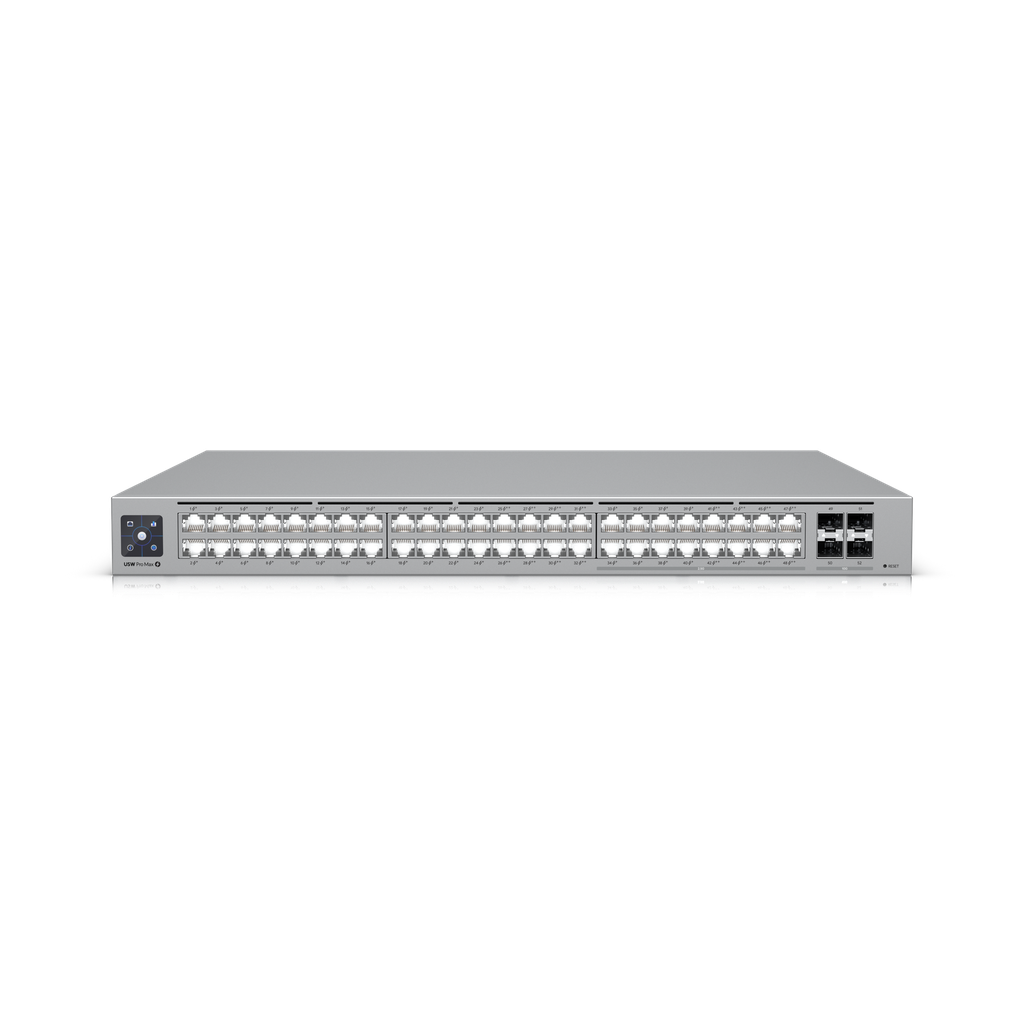

Ubiquiti USW-Pro-Max-48-POE UniFi A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output
Switch Pro Max 48 PoE for UniFi networks, featuring 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports, 720W PoE availability, and 224 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Pro-Max-48-PoE UniFi Switch Pro Max 48 PoE
USW-Pro-Max-48-PoE is a UniFi PoE switch for managed business networks, with 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports, 224 Gbps switching capacity, and 720W PoE availability.
Key Features
- A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
- High-density switching with 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 224 Gbps switching capacity.
- Integrated PoE support with 720W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 442.4 x 400 x 44 mm
- Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
- Connectivity: 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 100W (Excluding PoE Output); 820W (Including PoE Output)
- PoE budget: 720W
- Switching capacity: 224 Gbps
- Total non-blocking throughput: 112 Gbps
- Forwarding rate: 167 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 06373-24-08356
- Application requirements: Version 8.0.24 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
- Redundancy: DC Power Backup (With UniFi RPS)
