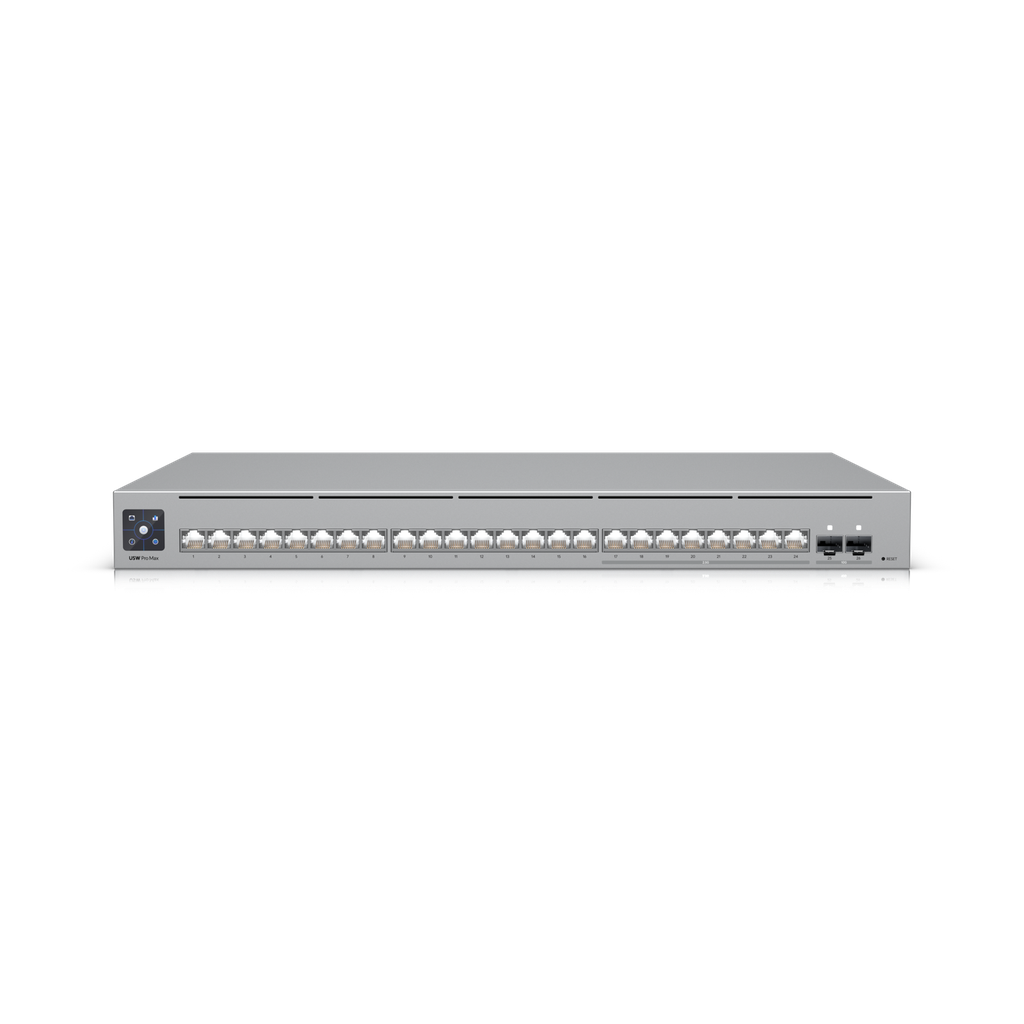

Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE
Switch Pro Max 24 for UniFi networks, featuring 16 GbE RJ45 ports, 8 2.5 GbE RJ45 ports, 2 10G SFP+ ports, and 112 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

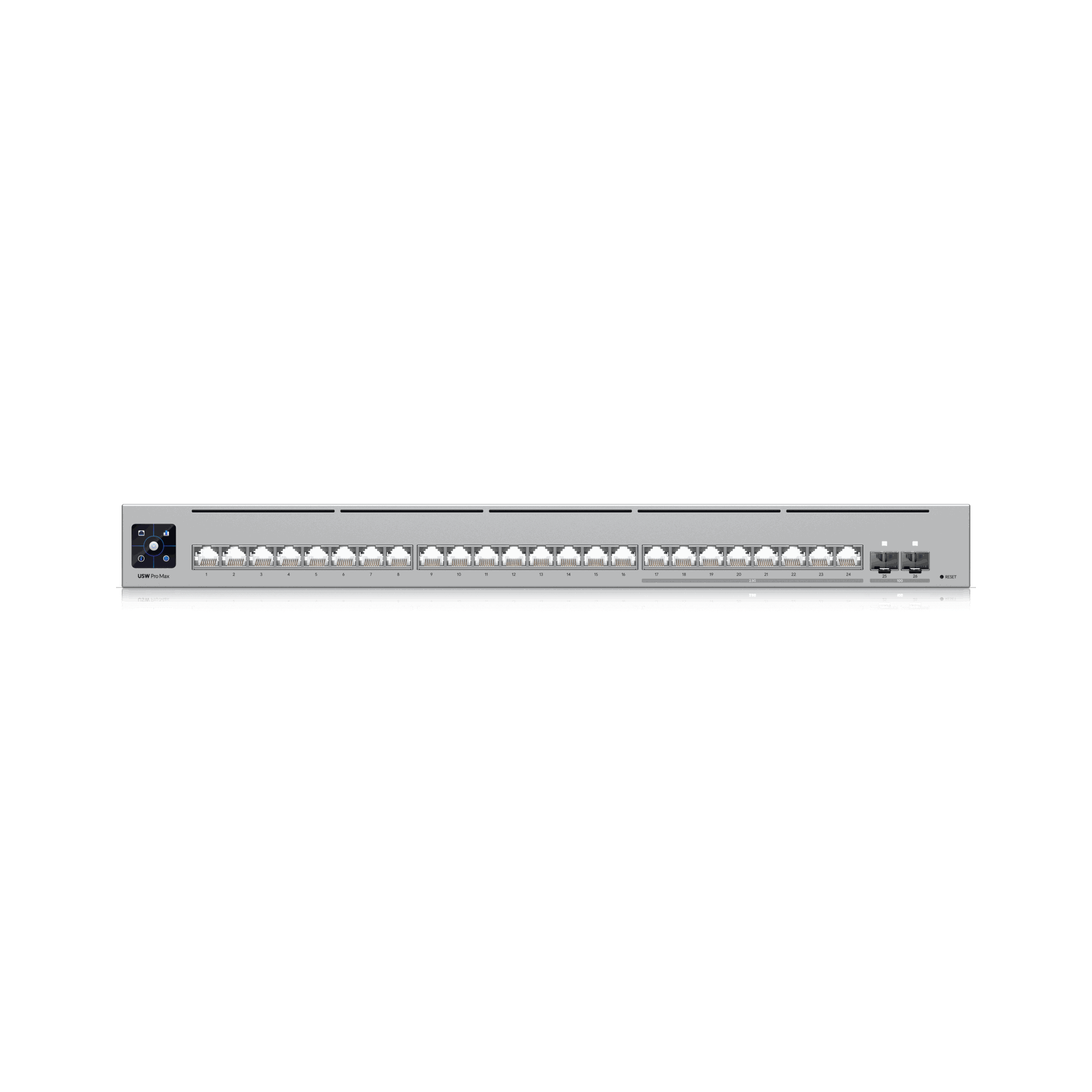

Ubiquiti USW-Pro-Max-24 UniFi Switch Pro Max 24
USW-Pro-Max-24 is a UniFi switch for managed business networks, with 16 GbE RJ45 ports, 8 2.5 GbE RJ45 ports, 2 10G SFP+ ports, 112 Gbps switching capacity.
Key Features
- A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
- High-density switching with 16 GbE RJ45 ports, 8 2.5 GbE RJ45 ports, 2 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 112 Gbps switching capacity.
- Layer 3 switching features for scalable UniFi network designs.
- Rack mount (1U) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 442 x 325 x 44 mm
- Weight: Without mounting brackets: 4.2 kg; With mounting brackets: 4.3 kg
- Connectivity: 16 GbE RJ45 ports, 8 2.5 GbE RJ45 ports, 2 10G SFP+ ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 50W
- Switching capacity: 112 Gbps
- Total non-blocking throughput: 56 Gbps
- Forwarding rate: 83 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 06374-24-08356
- Application requirements: Version 8.0.24 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Redundancy: DC Power Backup (With UniFi RPS)
