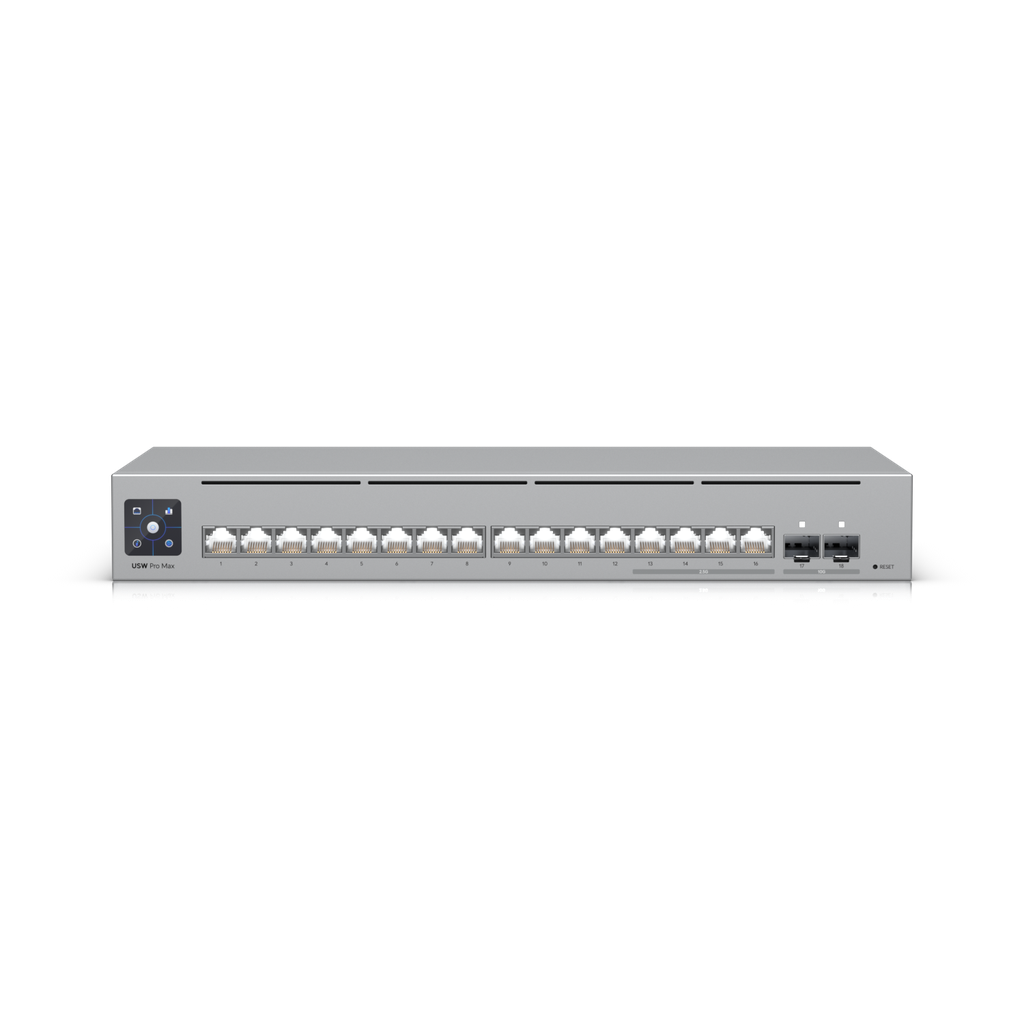

Ubiquiti USW-Pro-Max-16-AU UniFi 16-port, Layer 3 Etherlighting™ switch 2.5 GbE SFP+
Switch Pro Max 16 for UniFi networks, featuring 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports, and 84 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

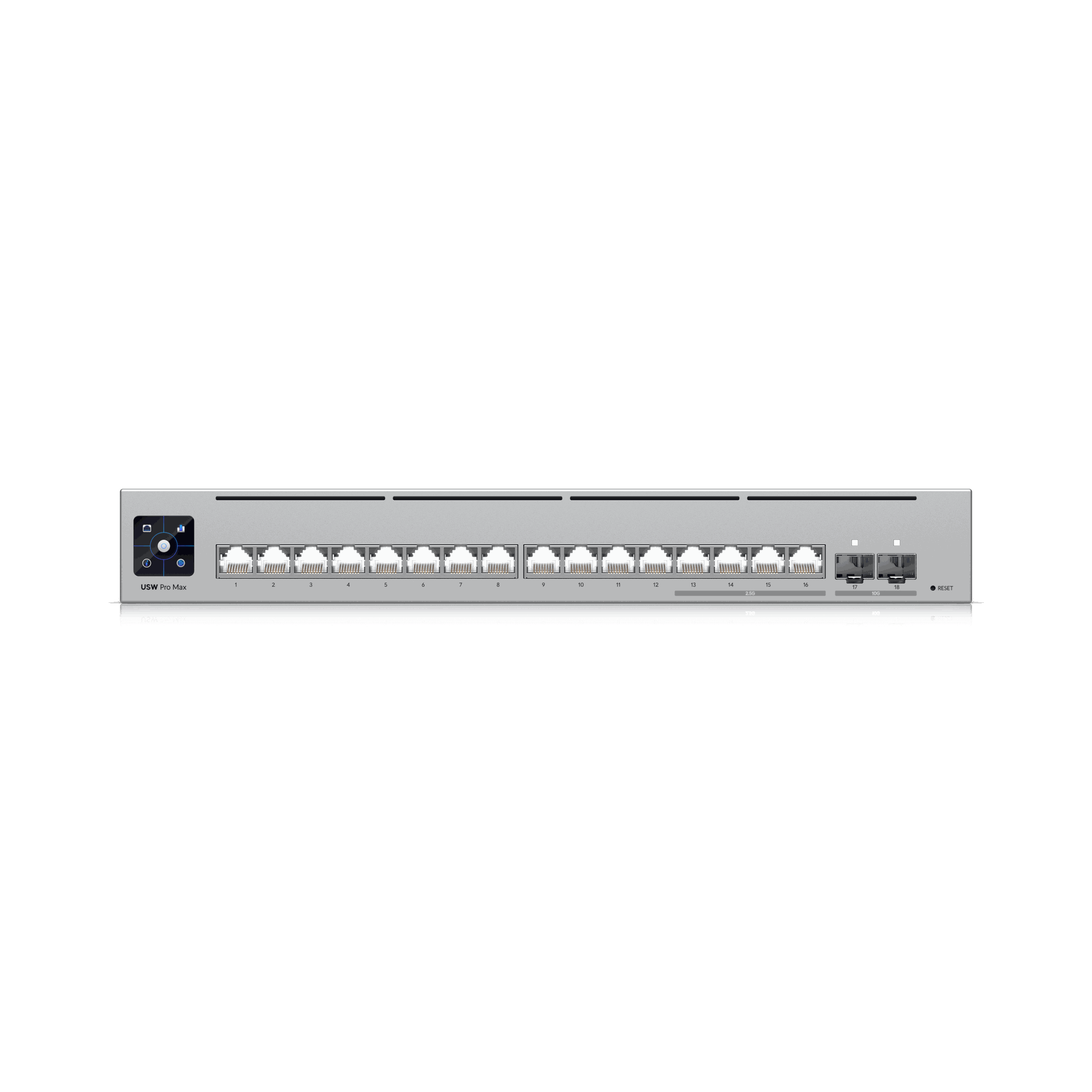

Ubiquiti USW-Pro-Max-16 UniFi Switch Pro Max 16
USW-Pro-Max-16 is a UniFi switch for managed business networks, with 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports, 84 Gbps switching capacity.
Key Features
- A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
- High-density switching with 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 84 Gbps switching capacity.
- Layer 3 switching features for scalable UniFi network designs.
- Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 325.1 x 160 x 43.7 mm
- Weight: 1.95 kg
- Connectivity: 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports
- Power method: AC/DC Adapter (included)
- Max. power consumption: 25W
- Switching capacity: 84 Gbps
- Total non-blocking throughput: 42 Gbps
- Forwarding rate: 62 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 08953-24-08356
- Application requirements: Version 8.1.127 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
