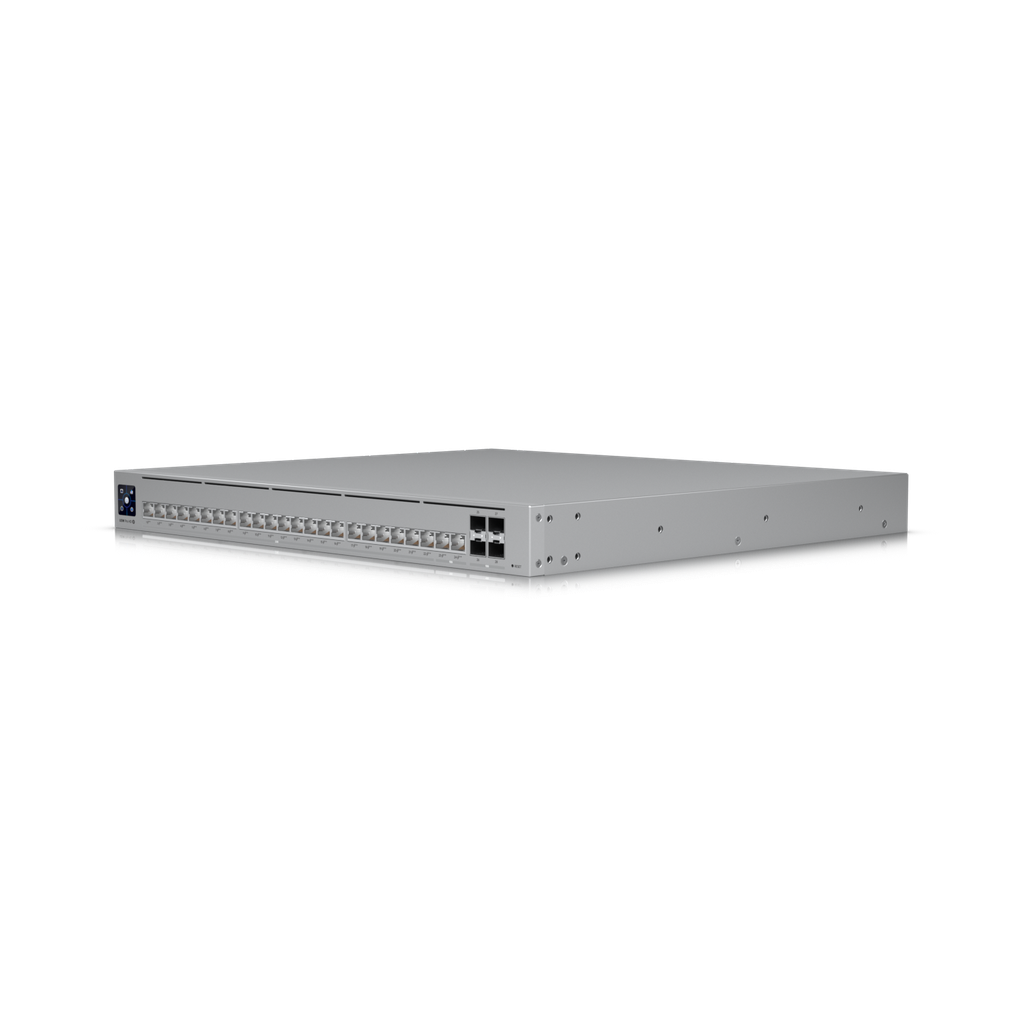

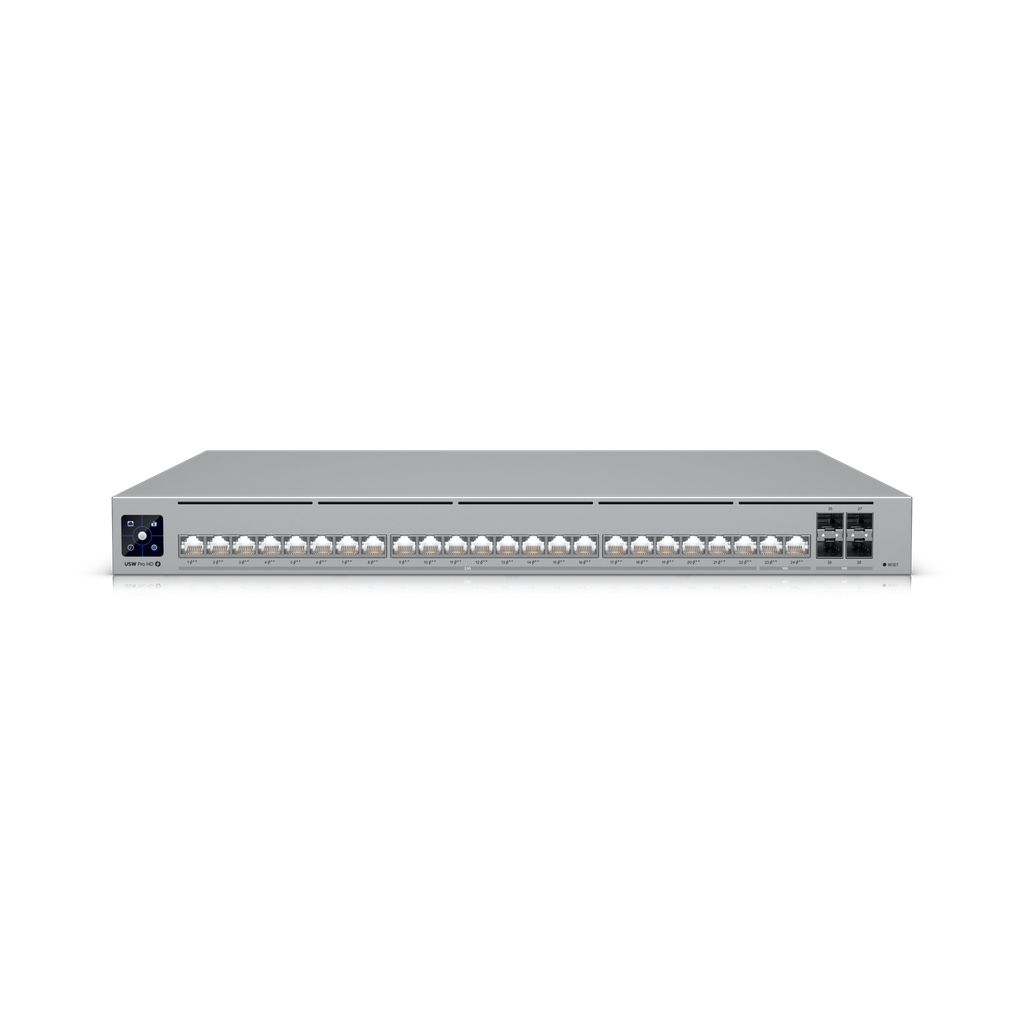

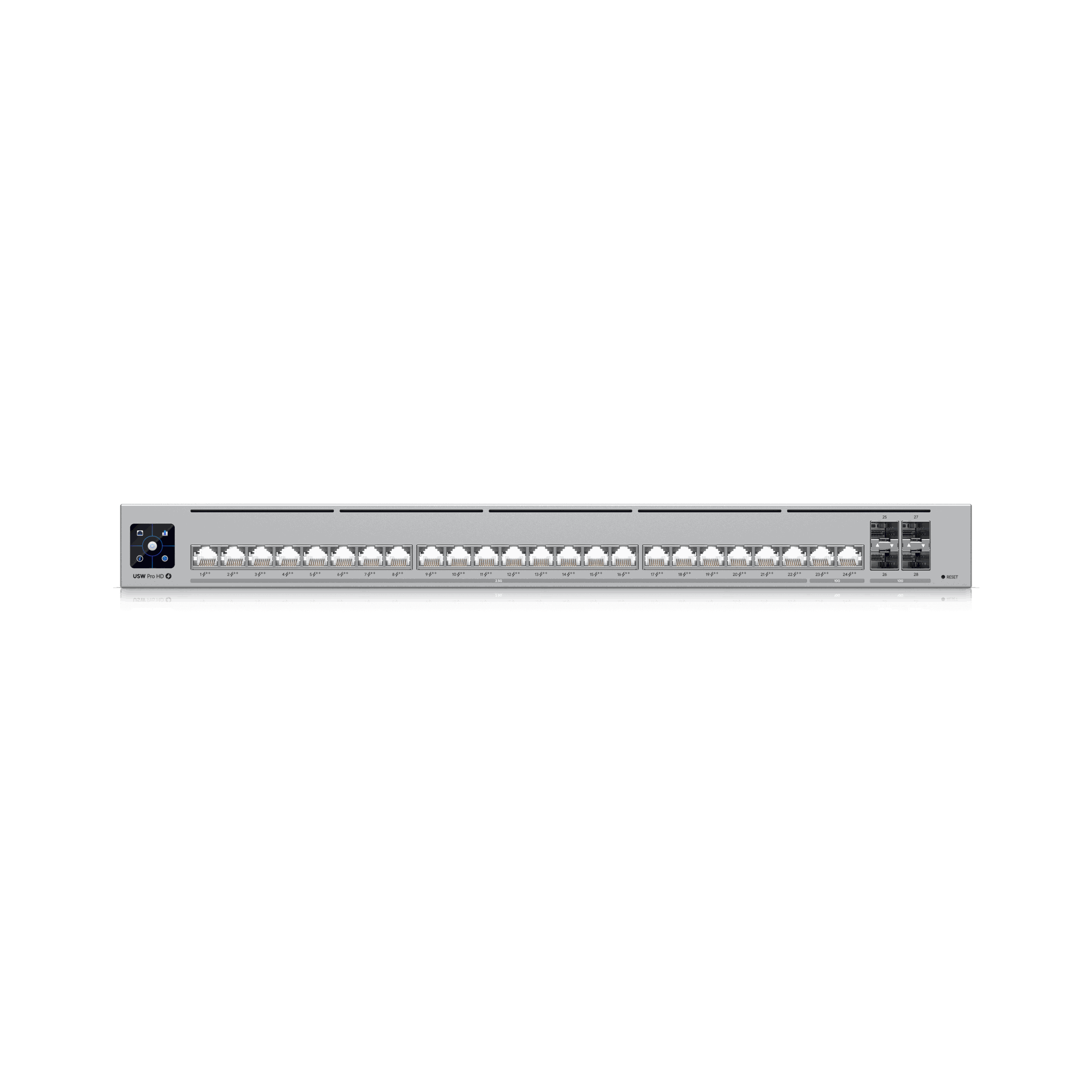

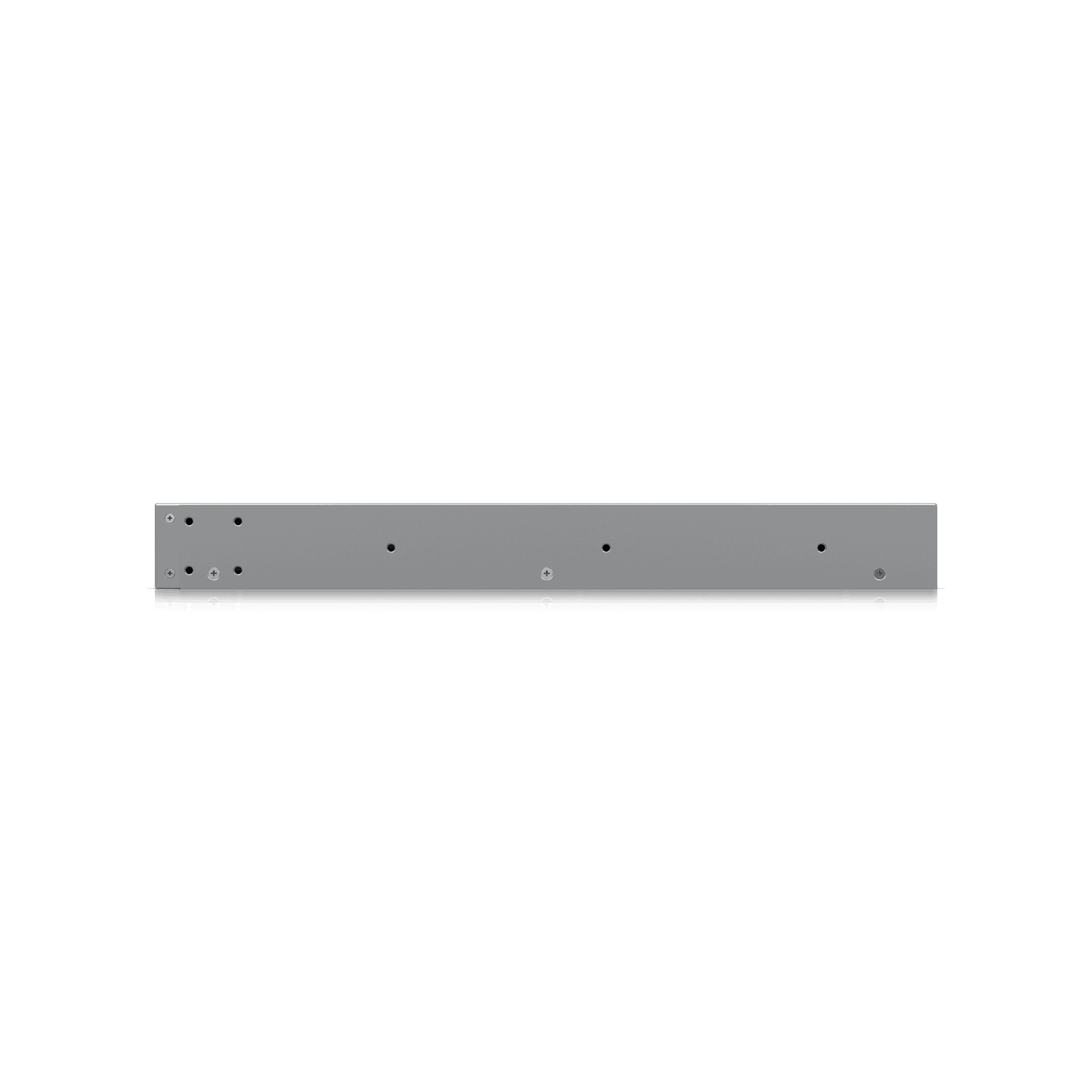

Ubiquiti USW-Pro-HD-24-PoE UniFi Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE PoE++, 22x 2.5 GbE PoE++, 4x 10G SFP+
Switch Pro HD 24 PoE for UniFi networks, featuring 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports, 600W PoE availability, and 230 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Pro-HD-24-PoE UniFi Switch Pro HD 24 PoE
USW-Pro-HD-24-PoE is a UniFi PoE switch for managed business networks, with 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports, 230 Gbps switching capacity, and 600W PoE availability.
Key Features
- Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
- High-density switching with 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 230 Gbps switching capacity.
- Integrated PoE support with 600W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 442 x 400 x 44 mm
- Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
- Connectivity: 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 60W (Excluding PoE Output); 660W (Including PoE Output)
- PoE budget: 600W
- Switching capacity: 230 Gbps
- Total non-blocking throughput: 115 Gbps
- Forwarding rate: 171 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 03853-25-08356
- Application requirements: Version 9.0.114 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
- Redundancy: DC Power Backup (With UniFi RPS)
