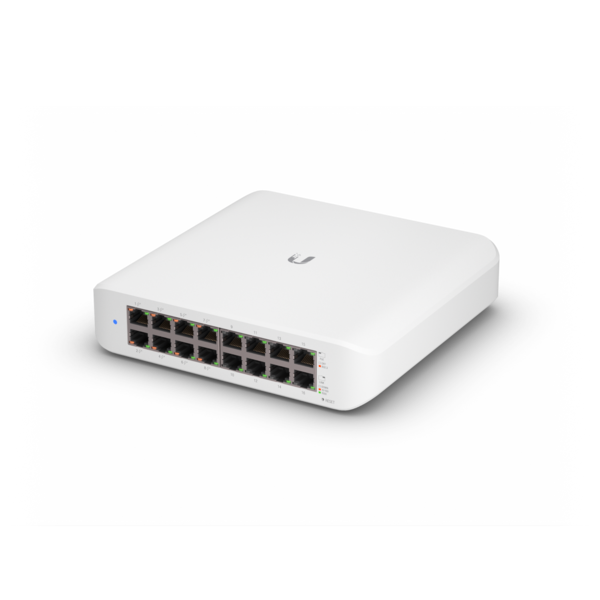

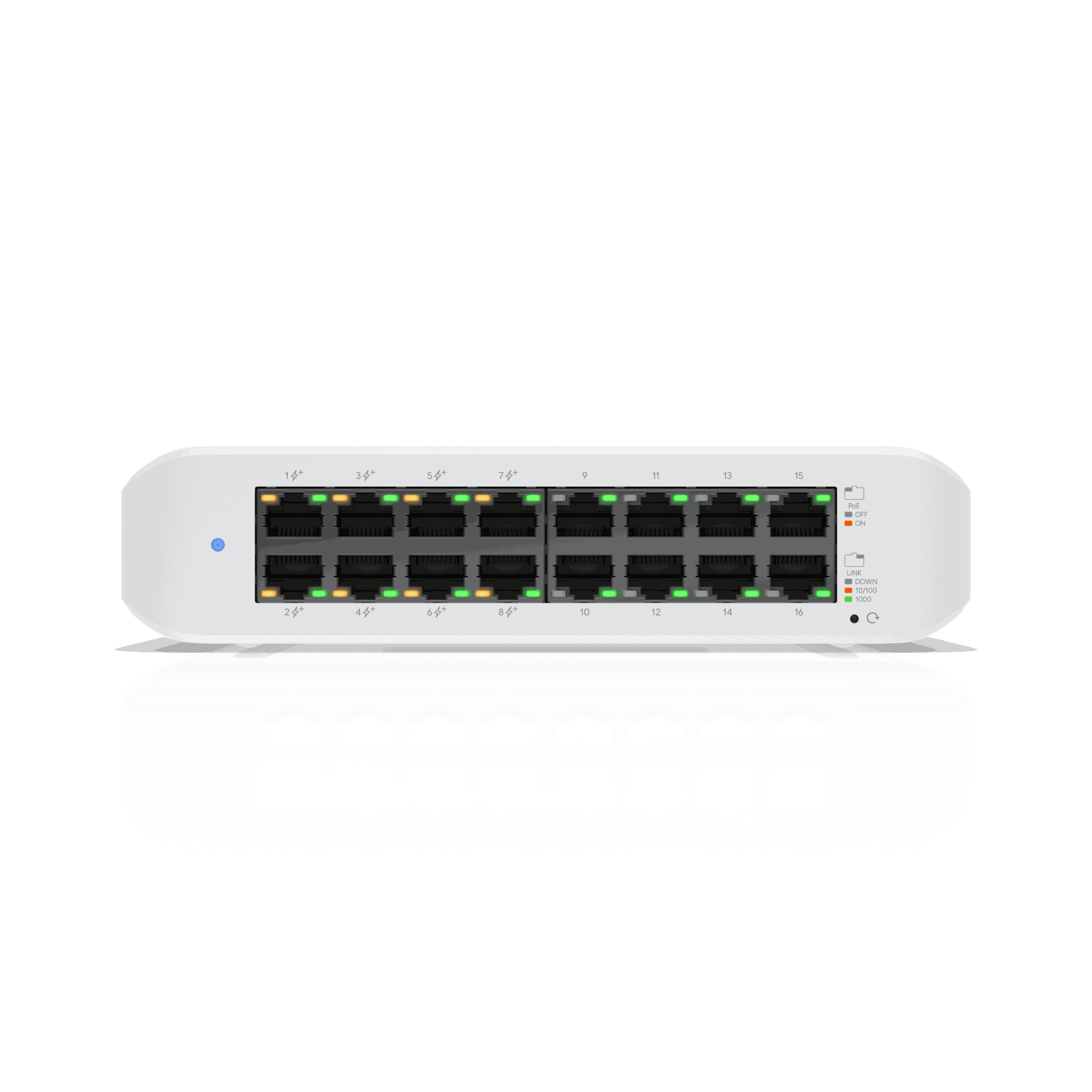

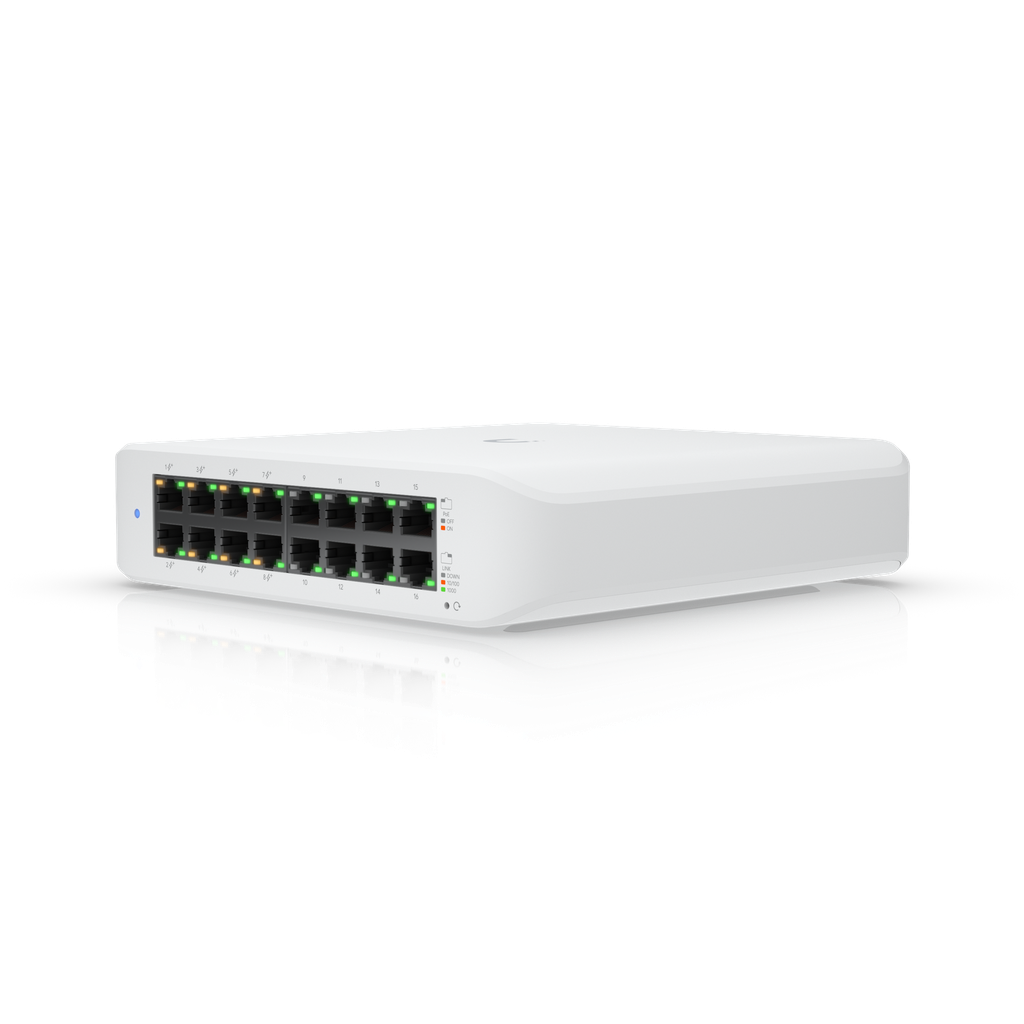

Ubiquiti USW-Lite-16-POE UniFi Switch Lite 16-Port 8 x PoE
Switch Lite 16 PoE for UniFi networks, featuring 16 (8 PoE+) GbE RJ45 ports, 45W PoE availability, and 32 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Lite-16-POE UniFi Switch Lite 16 PoE
USW-Lite-16-POE is a UniFi PoE switch for managed business networks, with 16 (8 PoE+) GbE RJ45 ports, 32 Gbps switching capacity, and 45W PoE availability.
Key Features
- A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
- High-density switching with 16 (8 PoE+) GbE RJ45 ports.
- Performance designed for demanding UniFi networks, including 32 Gbps switching capacity.
- Integrated PoE support with 45W total PoE availability.
- Compact desktop, wall form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 192 x 185 x 44 mm
- Weight: 1.2 kg
- Connectivity: 16 (8 PoE+) GbE RJ45 ports

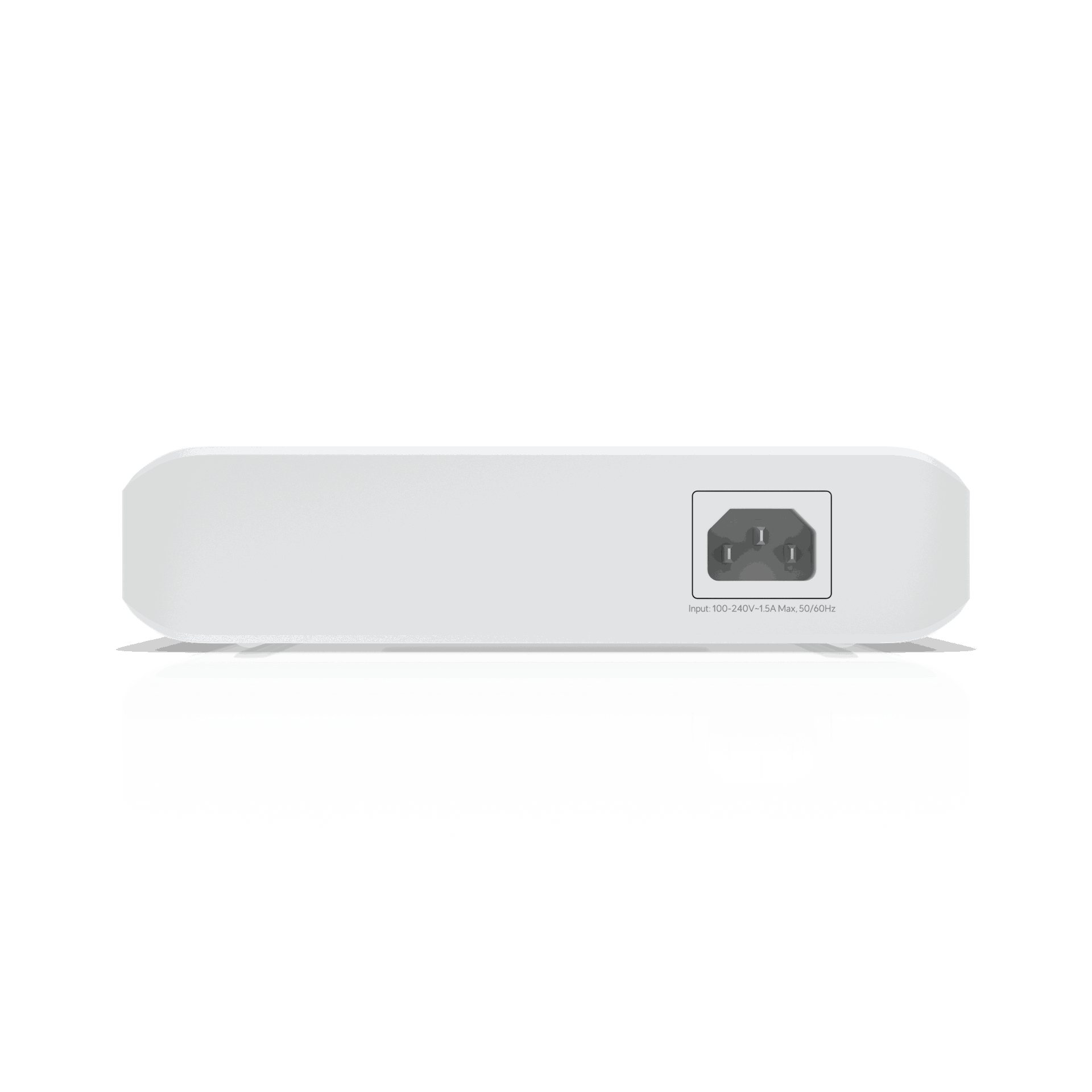

- Power method: Universal input, 100–240V AC, 50/60 Hz
- Max. power consumption: 15W (Excluding PoE Output); 60W (Including PoE Output)
- PoE budget: 45W
- Switching capacity: 32 Gbps
- Total non-blocking throughput: 16 Gbps
- Forwarding rate: 24 Mpps
- Form factor / mounting: Compact desktop, wall
- Operating temperature: -15 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 04479-21-08356
- Application requirements: Version 7.2.94 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
