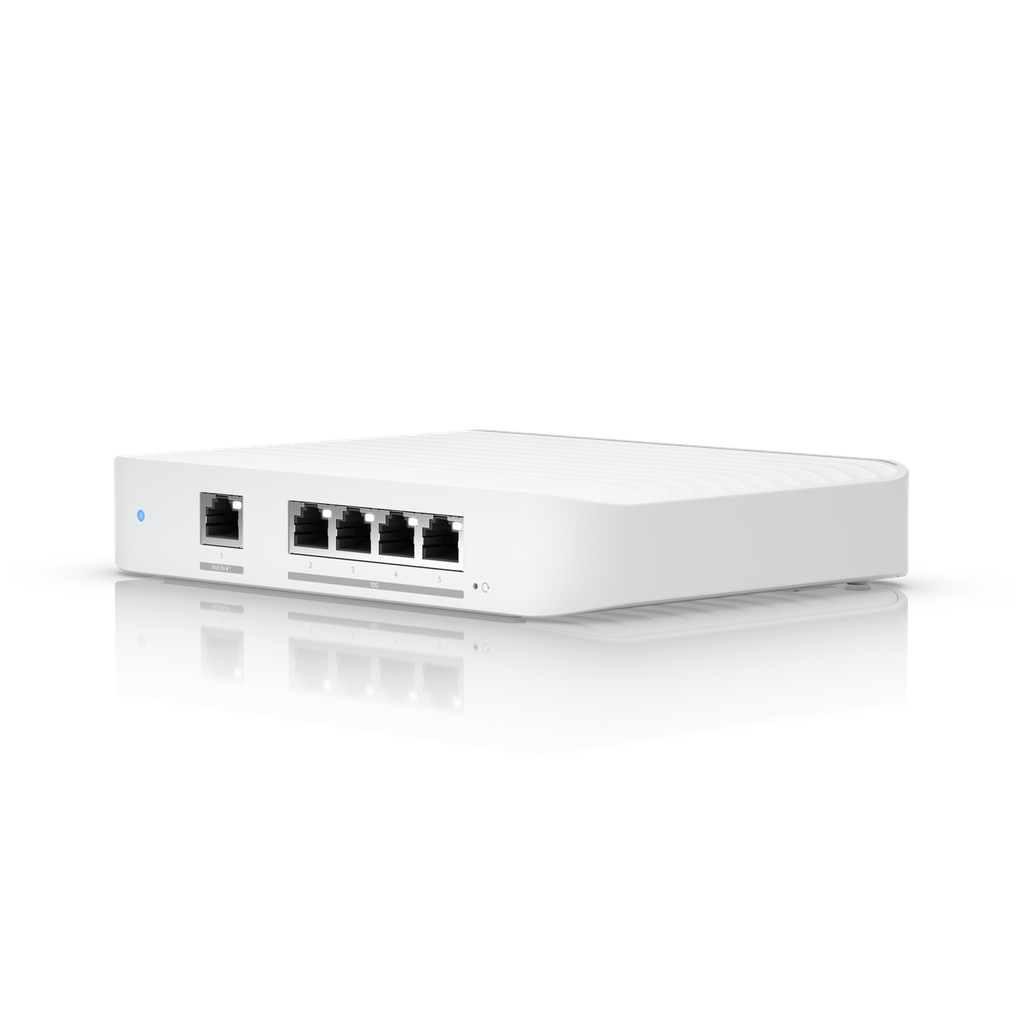

Ubiquiti USW-Flex-XG UniFi 5 Port 10 Gigabit Switch with PoE Input Power Support
Switch Flex XG for UniFi networks, featuring 1 GbE RJ45 ports, 4 10 GbE RJ45 ports, and 82 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Flex-XG UniFi Switch Flex XG
USW-Flex-XG is a UniFi PoE switch for managed business networks, with 1 GbE RJ45 ports, 4 10 GbE RJ45 ports, 82 Gbps switching capacity.
Key Features
- A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
- High-density switching with 1 GbE RJ45 ports, 4 10 GbE RJ45 ports.
- Performance designed for demanding UniFi networks, including 82 Gbps switching capacity.
- Compact desktop, wall form factor for clean installation in network cabinets or branches.
- Managed with Version 6.1.67 and later for centralised UniFi monitoring and control.
Technical Specifications
- Dimensions: 135 x 185 x 32 mm
- Weight: 1.2 kg
- Connectivity: 1 GbE RJ45 ports, 4 10 GbE RJ45 ports
- Power method: (1) PoE+; (1) USB Type-C, 5V DC, 5A
- Max. power consumption: 25W
- Switching capacity: 82 Gbps
- Total non-blocking throughput: 41 Gbps
- Forwarding rate: 61 Mpps
- Form factor / mounting: Compact desktop, wall
- Operating temperature: -5 to 45° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 06606-25-08356
- Application requirements: Version 6.1.67 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Packet Buffer Size: 1.5 MB
