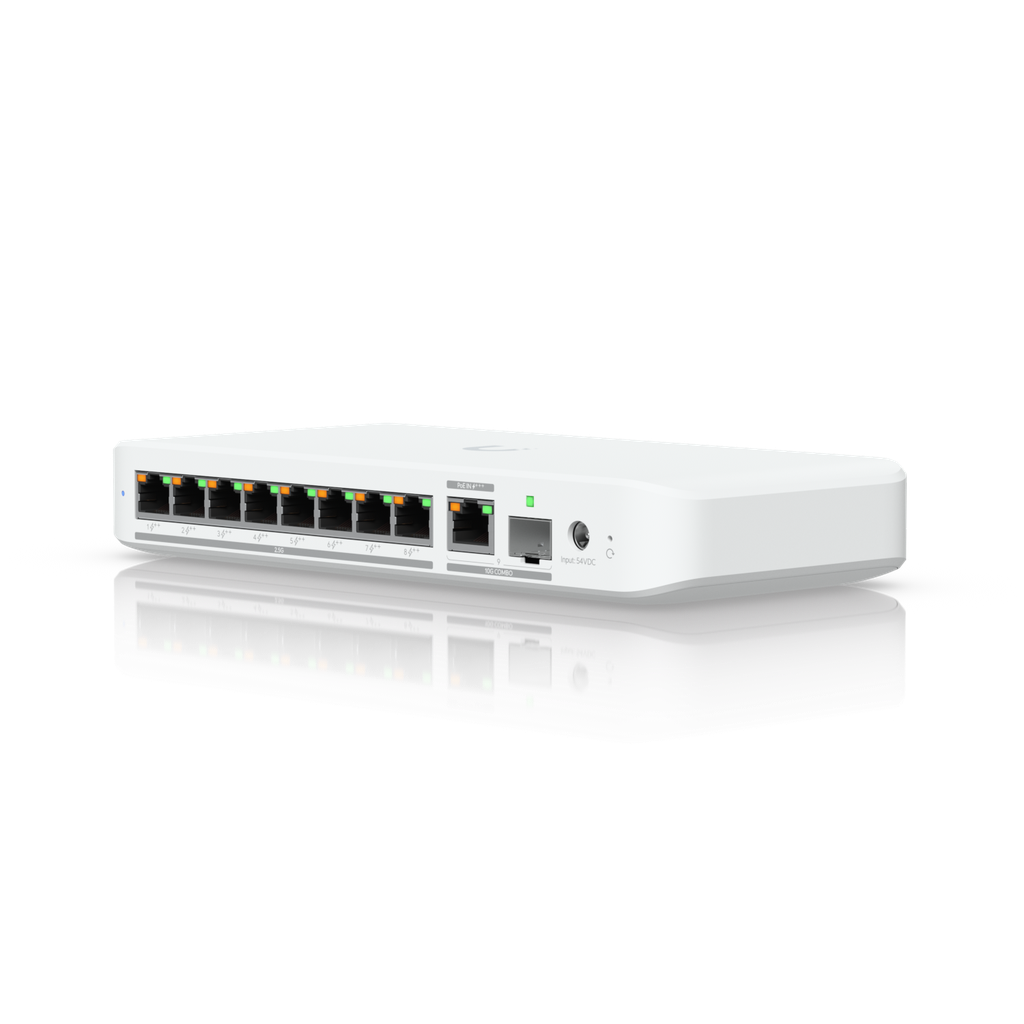

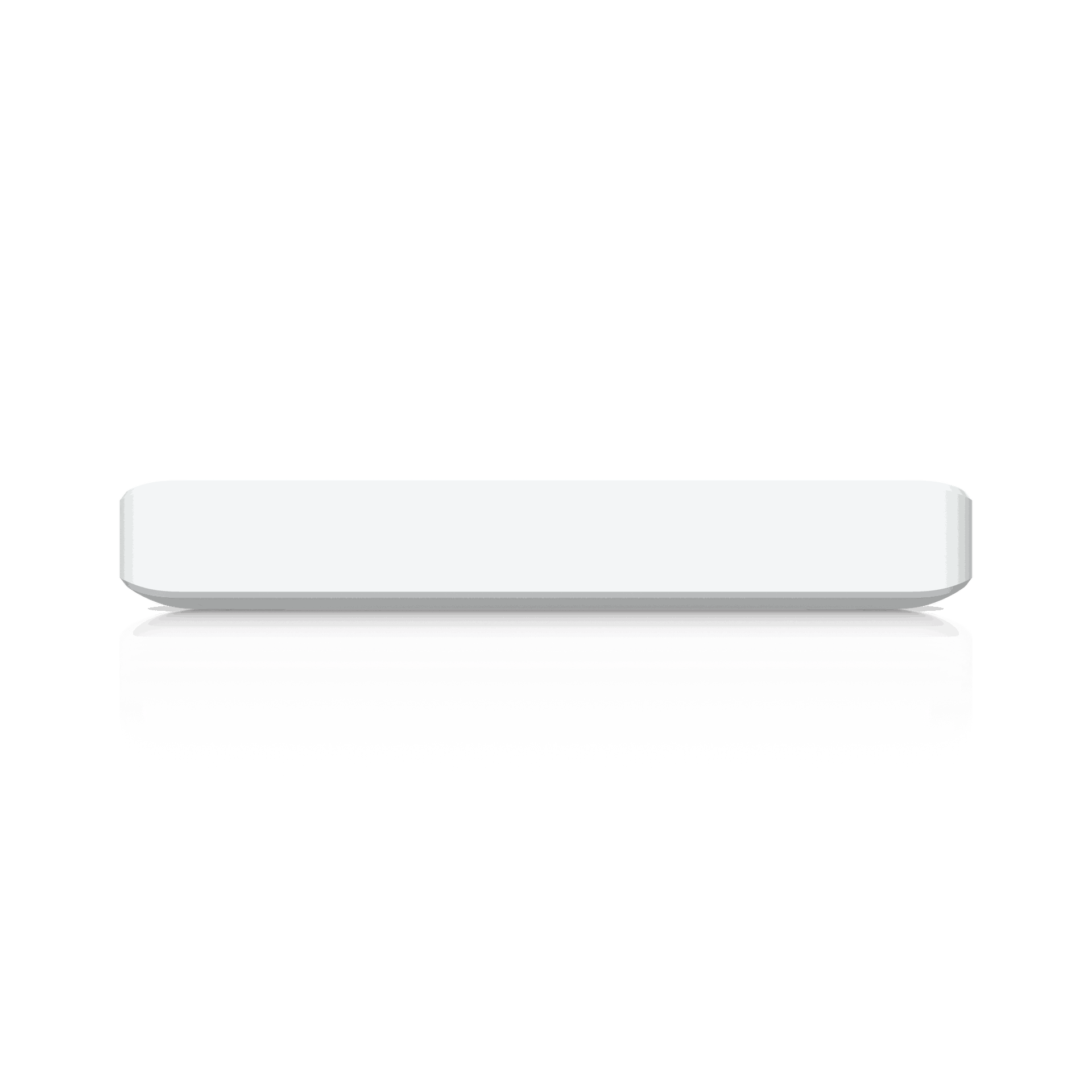

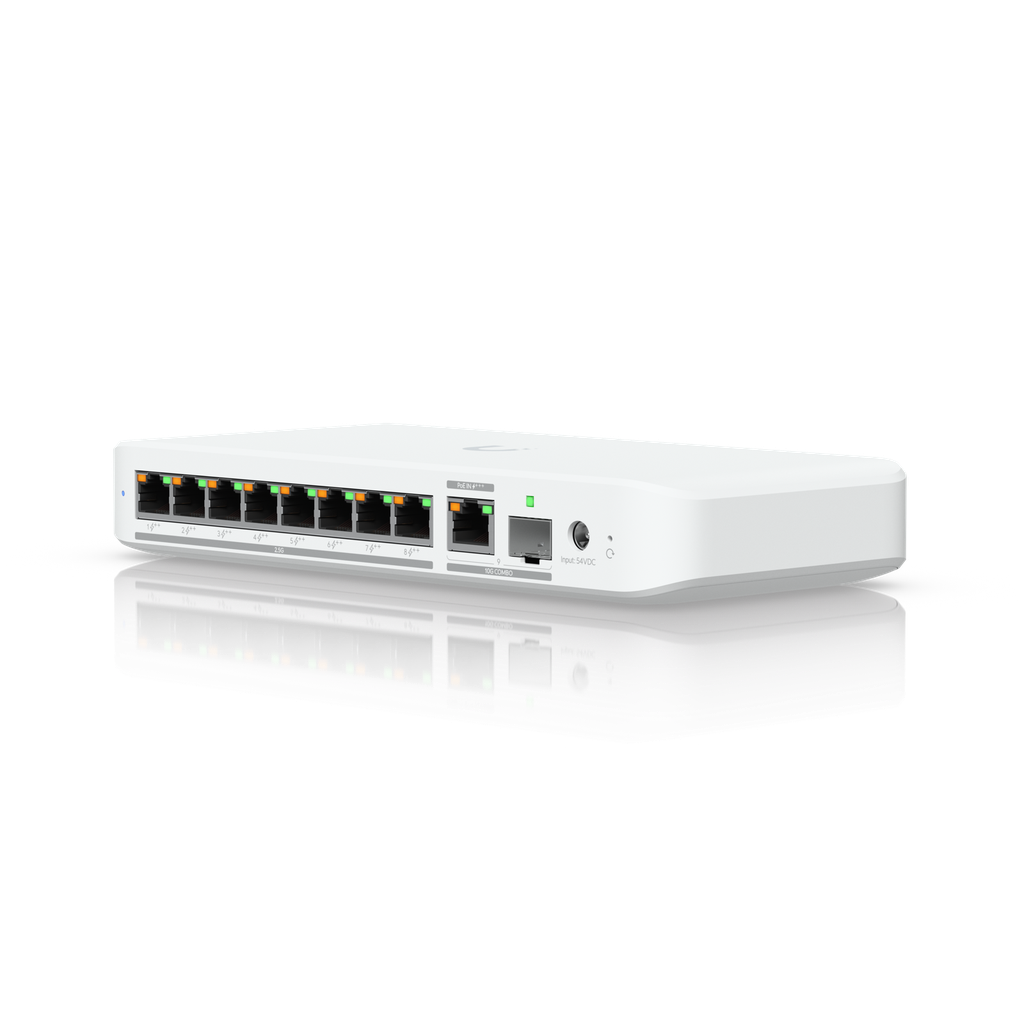

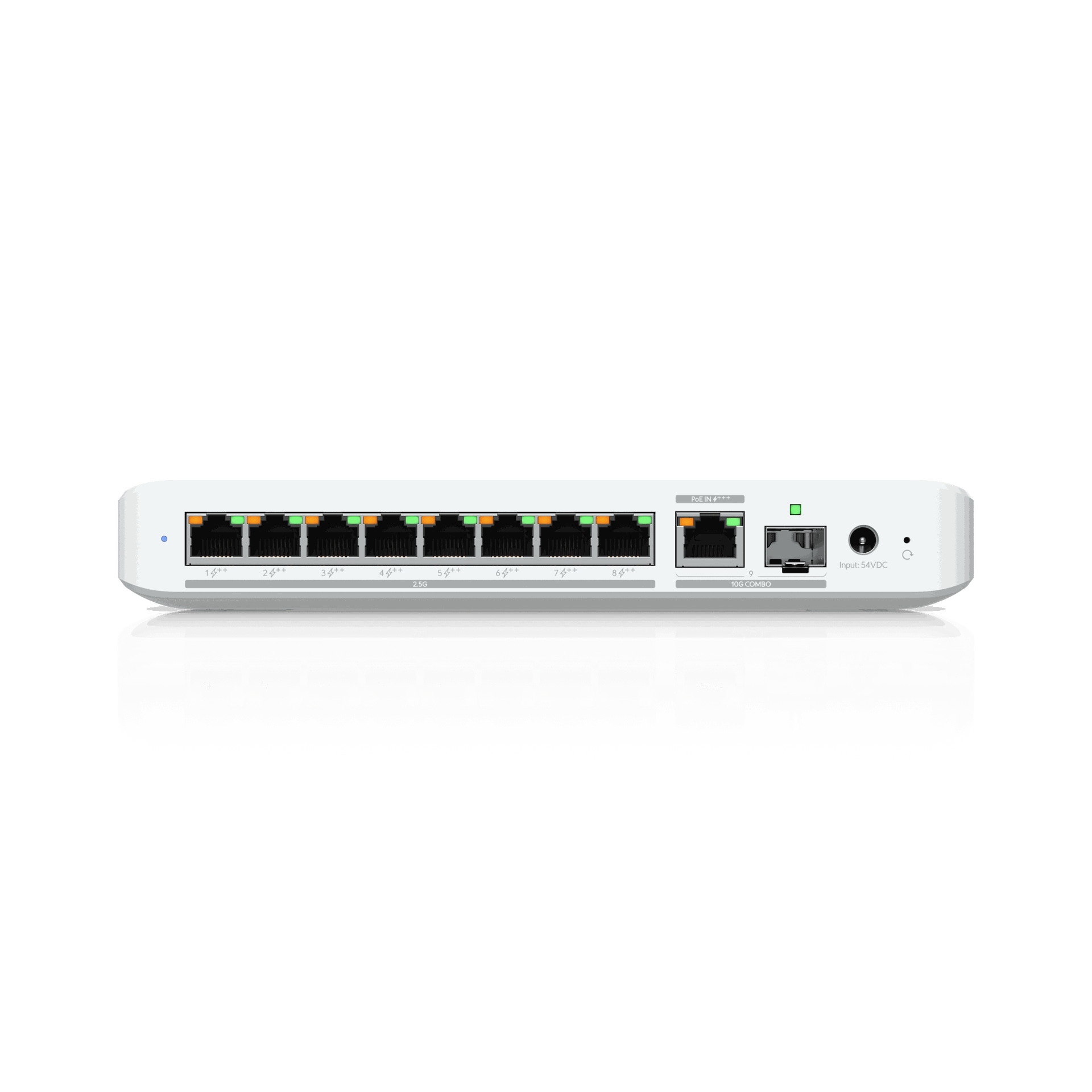

Ubiquiti USW-Flex-2.5G-8-PoE UniFi Compact 8 Port Gigabit Desktop Switch with POE (No Power Supply Included)
Switch Flex 2.5G PoE for UniFi networks, featuring managed switching, Layer 2/Layer 3 capabilities where supported, and centralised UniFi Network management.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Flex-2.5G-8-PoE UniFi Switch Flex 2.5G PoE
USW-Flex-2.5G-8-PoE is a UniFi PoE switch for managed business networks, with 8 (All PoE++) 2.5 GbE RJ45 ports, 1 (PoE+++) 10 GbE RJ45 ports, 1 10G SFP+ ports, 60 Gbps switching capacity, and PoE+++ input: 76W; PoE++ input: 46W; PoE+ input: 16W; 210W AC adapter input: 196W (PoE input availability excludes cable loss. AC input availability at 45° C operating temperature. PoE availability.
Key Features
- Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
- High-density switching with 8 (All PoE++) 2.5 GbE RJ45 ports, 1 (PoE+++) 10 GbE RJ45 ports, 1 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 60 Gbps switching capacity.
- Integrated PoE support with PoE+++ input: 76W; PoE++ input: 46W; PoE+ input: 16W; 210W AC adapter input: 196W (PoE input availability excludes cable loss. AC input availability at 45° C operating temperature. total PoE availability.
- Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 212.9 x 99.4 x 33.5 mm
- Weight: 567 g
- Connectivity: 8 (All PoE++) 2.5 GbE RJ45 ports, 1 (PoE+++) 10 GbE RJ45 ports, 1 10G SFP+ ports
- Power method: (1) AC/DC adapter (Excluded); (1) PoE+++ (AC power adapter sold separately.)
- Max. power consumption: 14W (Excluding PoE output) with PoE input; 17W (Excluding PoE output) with AC adapter input; 210W (Including PoE Output)
- PoE budget: PoE+++ input: 76W; PoE++ input: 46W; PoE+ input: 16W; 210W AC adapter input: 196W (PoE input availability excludes cable loss. AC input availability at 45° C operating temperature.
- Switching capacity: 60 Gbps
- Total non-blocking throughput: 30 Gbps
- Forwarding rate: 45 Mpps
- Form factor / mounting: Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately)
- Operating temperature: -20 to 45° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
- Application requirements: Version 9.0.114 and later
- Supported VLANs: 256
- MAC Address Table Size: 4,000
