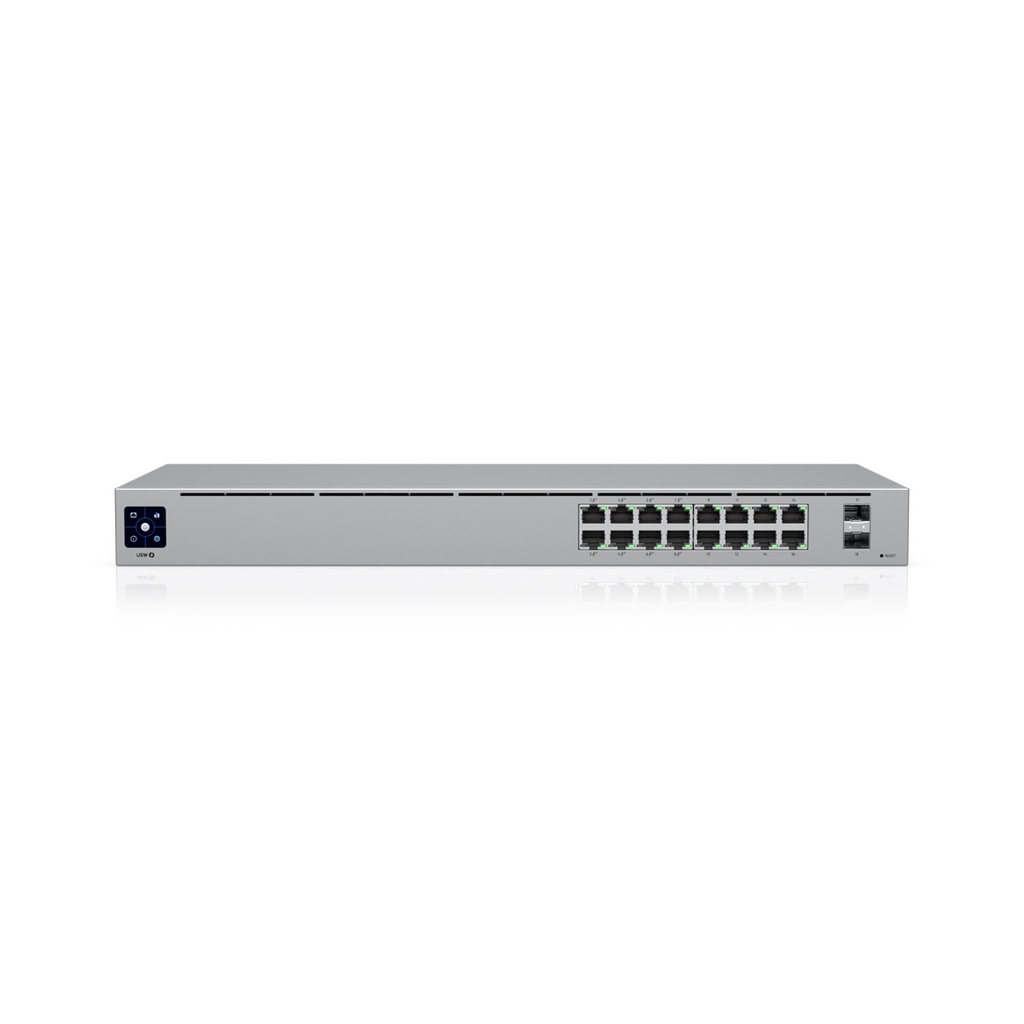

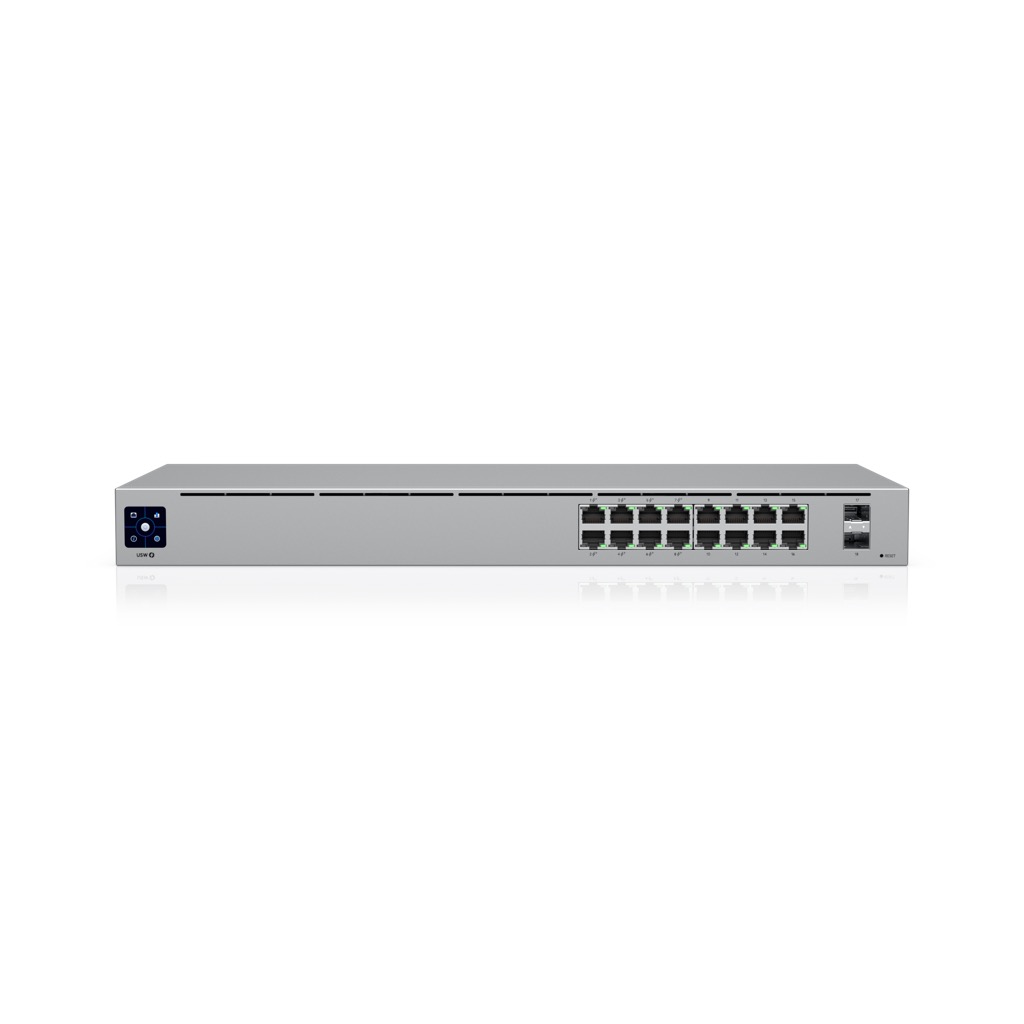

Ubiquiti USW-16-POE Gen2 UniFi 16 Port Gigabit Switch with PoE and SFP - 8 POE Ports
Switch 16 PoE for UniFi networks, featuring 16 (8 PoE+) GbE RJ45 ports, 2 1G SFP ports, 42W PoE availability, and 36 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

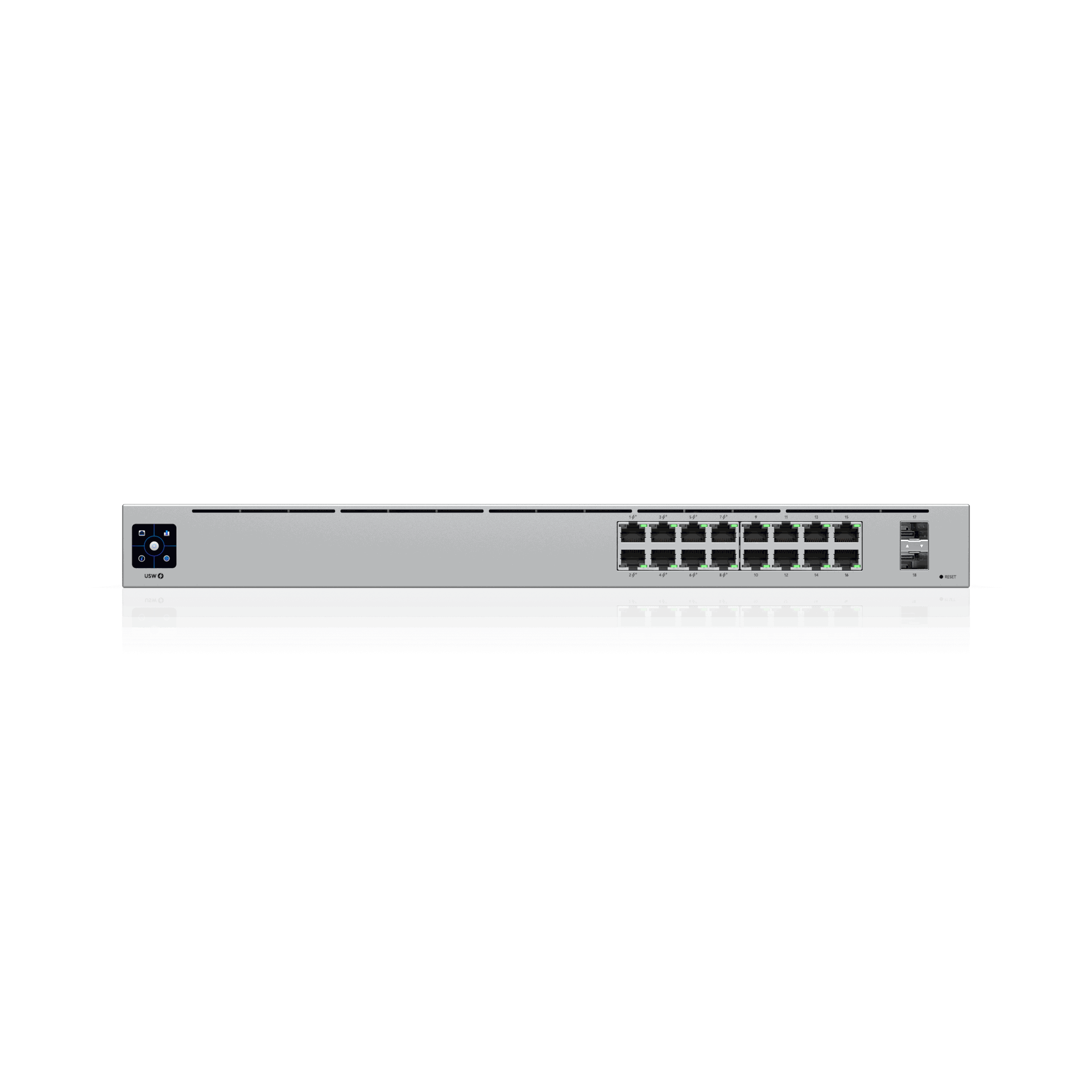

Ubiquiti USW-16-PoE UniFi Switch 16 PoE
USW-16-PoE is a UniFi PoE switch for managed business networks, with 16 (8 PoE+) GbE RJ45 ports, 2 1G SFP ports, 36 Gbps switching capacity, and 42W PoE availability.
Key Features
- A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
- High-density switching with 16 (8 PoE+) GbE RJ45 ports, 2 1G SFP ports.
- Performance designed for demanding UniFi networks, including 36 Gbps switching capacity.
- Integrated PoE support with 42W total PoE availability.
- Rack mount (1U) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 442 x 200 x 44 mm
- Weight: Without mounting brackets: 2.8 kg; With mounting brackets 2.9 kg
- Connectivity: 16 (8 PoE+) GbE RJ45 ports, 2 1G SFP ports
- Power method: Universal input, 100–240V AC, 50/60 Hz
- Max. power consumption: 18W (Excluding PoE Output); 60W (Including PoE Output)
- PoE budget: 42W
- Switching capacity: 36 Gbps
- Total non-blocking throughput: 18 Gbps
- Forwarding rate: 27 Mpps
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 00593-21-08356
- Application requirements: Version 7.2.94 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
