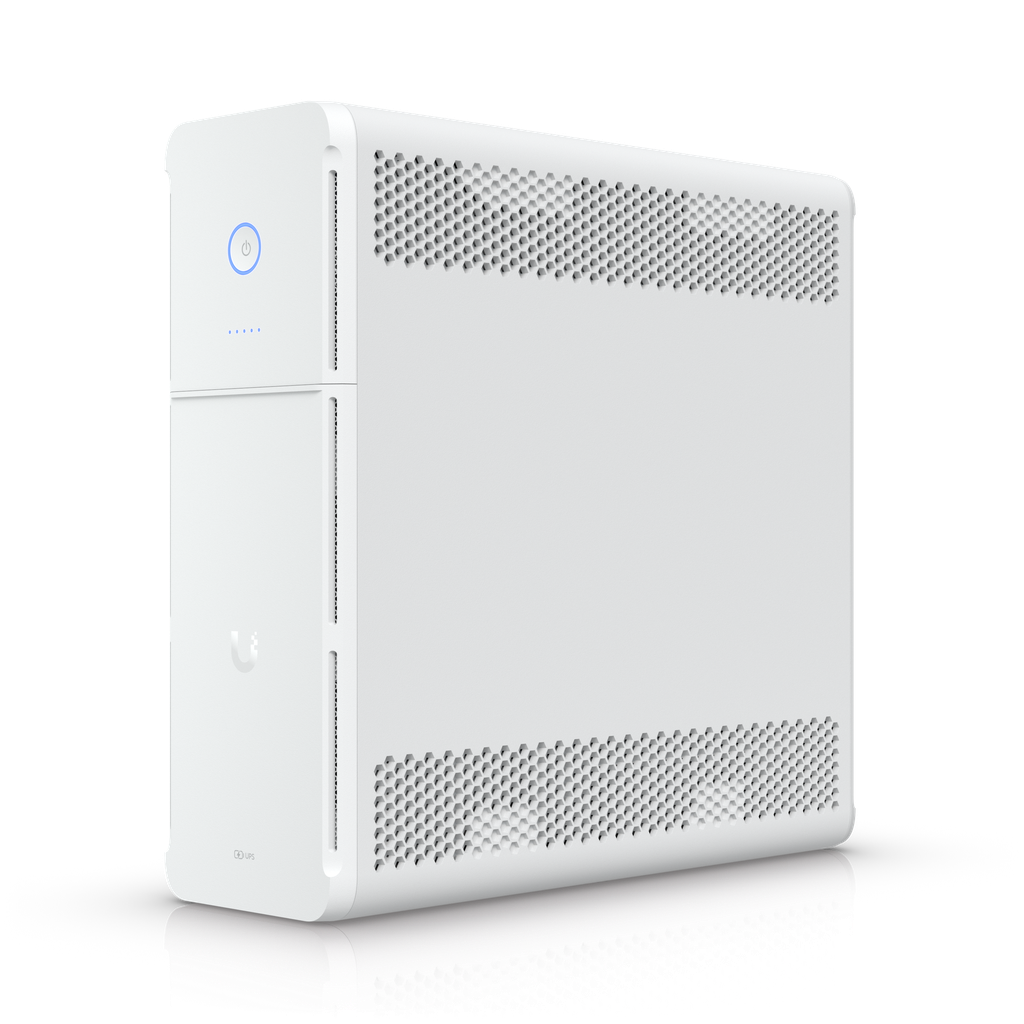

Ubiquiti UPS-Tower UniFi UPS Tower UniFi Managed 1kVA Rackmount Uninterruptible Power Supply With 10 x C13 Outlets - C13 x 5 Backup & C13 x 5 Surge Protected

https://streakwave.com.au/web/image/product.template/22805/image_1920?unique=0c9fd4d

Product Code: UPS-Tower

$ 460.90 incl. GST 460.90000000000003 AUD $ 460.90

$ 399.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

    Ubiquiti UPS-Tower UniFi UPS Tower UniFi Managed 1kVA Rackmount Uninterruptible Power Supply With 10 x C13 Outlets - C13 x 5 Backup & C13 x 5 Surge Protected

    Product Code: USP-Tower

    Ubiquiti UniFi managed 1kVA uninterruptible power supply with 5 x C13 backup outlets 5 x C13 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, NUT compatibility for third-party devices.

    (2) GbE ports for Surge In/Out

    (1)  100/10 MbE port for network connection

    (10) 240V AC C13 outputs; 600W

    Battery backup power system (UPS)

    Internal battery 108Wh (1) Lead Acid 12V, 9Ah

     Technical Specifications

    Mechanical
    Dimensions
    288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
    Weight
    7.85 kg (17.3 lb)
    Enclosure Material
    Polycarbonate and acrylonitrile butadiene styrene blend
    Form Factor
    Desktop
    Weatherproofing
    IP20
    Hardware
    Management
    Ethernet
    Networking Interface
    (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out
    Power
    (1) OVC II AC in: C14 socket (5) Battery backup/surge protection: C13 (5) Surge protection: C13
    Capacity
    1,000VA/600W
    Type
    Line interactive
    Input Voltage Range
    170—280V AC
    Power Method
    (1) TN system, 220—240V AC, 6A Max., 50/60 Hz
    Nominal Input Voltage
    230V AC
    Output Voltage
    220—240V AC
    Nominal Output Voltage
    230V AC
    Frequency Range
    AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz
    AC Voltage Regulation
    ±10% (Battery mode)
    Transfer Time
    6 ms typical; 10 ms max. (Battery mode)
    Wave Form
    Simulated sine wave (Battery mode)
    Battery Type
    (1) Lead Acid 12V, 9Ah
    Runtime
    Full load: 2 min Half load: 7 min
    Battery Charging Time
    6-8 hours recovery to 90% capacity
    Overload at On-Line Mode
    110% 5 min go to fault 120% go to fault immediately
    Overload at Battery Mode
    110% shutdown in 5 sec 120% shutdown immediately
    Short Circuit Protection at On-Line Mode
    Breaker, 250V AC, 10A
    Output Short-Circuit Current
    Ipeak 401.9A Irms 160.7A
    Buttons
    (1) Power (1) Factory reset
    LEDs
    Status
    Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
    Battery Indicator
    All off: 0% (1) Steady blue: battery 1—19% (2) Steady blue: battery 20—39% (3) Steady blue: battery 40—59% (4) Steady blue: battery 60—79% (5) Steady blue: battery 80—100%
    Operating Altitude
    3,000 m (1.9 mi)
    Operating Environment
    Pollution Degree 2
    Ambient Storage Temperature
    -20 to 50° C (-4 to 122° F)
    Ambient Operating Temperature
    0 to 40° C (32 to 104° F)
    Ambient Operating Humidity
    0 to 95% noncondensing
    Certifications
    CE, IEC 62040-1
