Ubiquiti UA-G3-SK-Gate Unifi G3 Gate Access Starter Kit
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

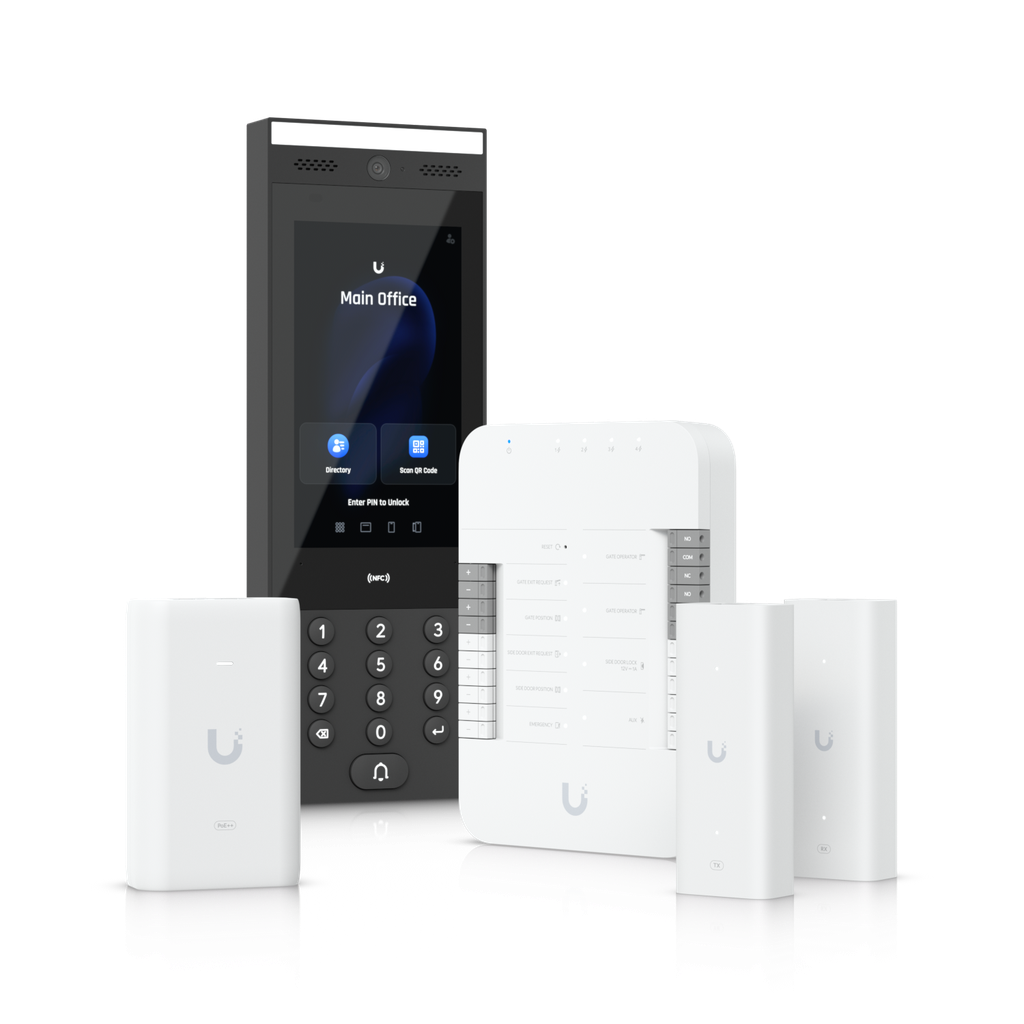

Ubiquiti UA-G3-SK-Gate Unifi G3 Gate Access Starter Kit
Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.
Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera*.
(1) Gate Hub
(1) Intercom
(1) PoE++ adapter
(2) 2-wire PoE extenders
Technical Specifications
In the Box (1) Gate Hub
(1) G3 Intercom
(1) PoE++ adapter
(2) 2-wire Retrofit Extenders Touch Pass 10 free 1-year Touch Passes included
Learn More Dimensions 175 x 126 x 26 mm
(6.9 x 5 x 1") Supported Doors 1 gate, 1 side door Input Terminals (1) Gate exit request
(1) Gate position
(1) Side door exit
(1) Side door position
(1) Emergency Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU Enclosure Material Polycarbonate Mounting DIN-rail (Included) Weight 460 g (1 lb) Indoor and Outdoor Use Indoor only: device itself
Outdoor: with waterproof junction box NDAA Compliant ✓ UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I Ambient Operating Temperature -30 to 60° C (-22 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing Networking Interface (5) 10/100/1000 Base-T PoE Interface (1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, Max. 28W Max. Power Consumption 22W (Without PoE output)
50W (With PoE output) Digital Input Gate exit request, gate position, side door exit request, side door position, emergency Dry Output Relay (2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A Powered Output Relay Side door lock: 12V DC, up to 1A LEDs W/B Learn More Button (1) Factory-reset Recommend Max. Cable Length UA-Lock-Electric
(400mA) 24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA) 24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) UA-Lock-Magnetic-270kg (800mA) 24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Other locks
(1A) 24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade Grade assignment: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-Hub-Gate, V01 Software Information The software version can be checked at https://unifi.ui.com Dimensions 324.8 x 113.7 x 28.3 mm
(12.8 x 4.5 x 1.1") Integrated Camera ✓ NFC Card & Keyfob Access ✓ PIN Access ✓ Apple/Google Wallet ✓ Mobile Unlock ✓ Two-Way Intercom & Doorbell Access ✓ Weatherproofing IP65 NDAA Compliant ✓ UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I Weight Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb) Enclosure Material Aluminum alloy, UV-stabilized polycarbonate, glass Mount Material Powder-coated stainless steel Mounting Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional) Indoor and Outdoor Use ✓ Ambient Operating Temperature Device: -30 to 60° C (-22 to 140° F)
Display: -25 to 60° C (-13 to 140° F) Ambient Operating Humidity 5 to 90% noncondensing Networking Interface (1) GbE RJ45 port Connectivity BLE 4.2
NFC Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU Max. Power Consumption 13W Supported Voltage Range 48V DC Sensors Proximity sensor
ALS sensor Display 177 mm (7") diagonal Touch Screen Technology Capacitive multi-touch Display Luminance Max. 1000 nits (Typical) Resolution 1024 x 600 px Microphone ✓ Speaker (1) Yes, 2W NFC Frequency 13.56 MHz NFC Read Range < 30 mm (1.18'') NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0 LEDs Amber Learn More Buttons (1) Factory-reset PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade Grade assignment: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-G3-Intercom, V01 Software Information The software version can be checked at https://unifi.ui.com Dimensions PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adapter: 140 g (4.9 oz) Enclosure Material Polycarbonate Mount Material Polycarbonate Coaxial Connector BNC female Networking Interface (1) 10/100 MbE
(1) Homeplug AV Power Method PoE++ PoE Interface PoE in: (1) PoE++, 50V DC, 1.2A
PoE out: (1) PoE+, 48V DC, 0.6A Max. Power Consumption 3W (Without PoE output) ESD/EMP Protection Air: ±8kV, contact: ±4kV LEDs White Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC Model U-PoE++ Dimensions 106 x 63 x 34 mm
(4.2 x 2.5 x 1.3") Weight 210 g (7.4 oz) Output Voltage 48V DC @ 1.25A Gigabit LAN Port ✓ Rated Voltage 100—240V AC @ 50/60Hz Input Current 1.3A @ 120V AC
0.75A @ 230V AC Inrush Current <100A peak @ 120V AC
<200A peak @ 230V AC Efficiency 85+% Output Ripple 1% max. Switching Frequency 65 kHz Line Regulation ≤ 1% Load Regulation ≤ 3% 4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC Connector IEC-320 C6 Data In / PoE RJ45 shielded socket Surge Protection Difference and common mode Clamping Protection 11V data, 60V power Max. Surge Discharge 1500A (8/20 μs) power Peak Pulse Current 36A (10/1000 μs) data Shunt Capacitance <5 pF data Response Time <1 ns Power Method Universal AC input, 100—240V AC, 50/60 Hz Power Supply AC/DC Supported Voltage Range 100—240V AC Max. PoE+ Wattage per Port by PSE 60W Storage Temperature -30 to 70°C (-22 to 158° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS NDAA Compliant ✓ |
|---|
