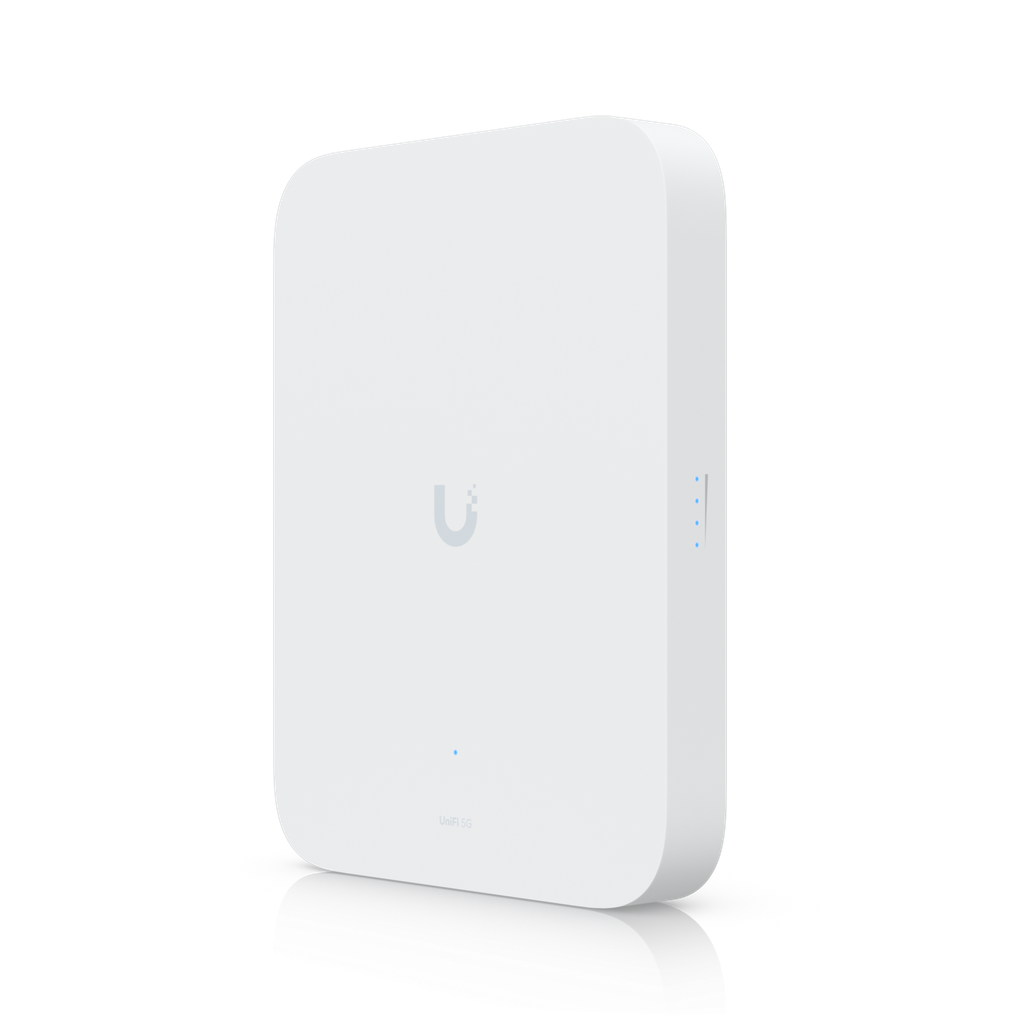

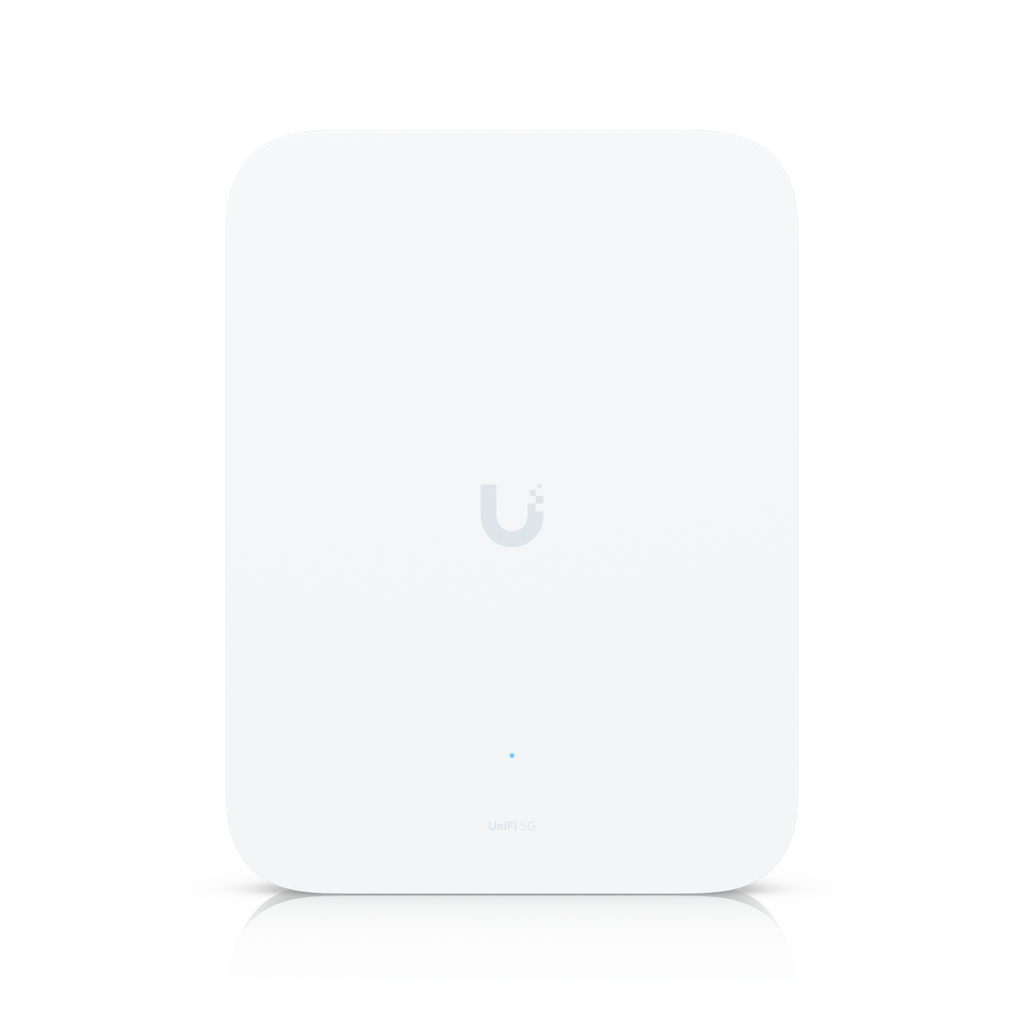

Ubiquiti U5G-Max-Outdoor 5G 3.4Gbps UniFi 5G Max Outdoor Dual SIM/eSIM
is an outdoor full-performance 5G modem for UniFi consoles and Cloud Gateways, with directional antennas, remote SIM support and dual SIM/eSIM failover.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

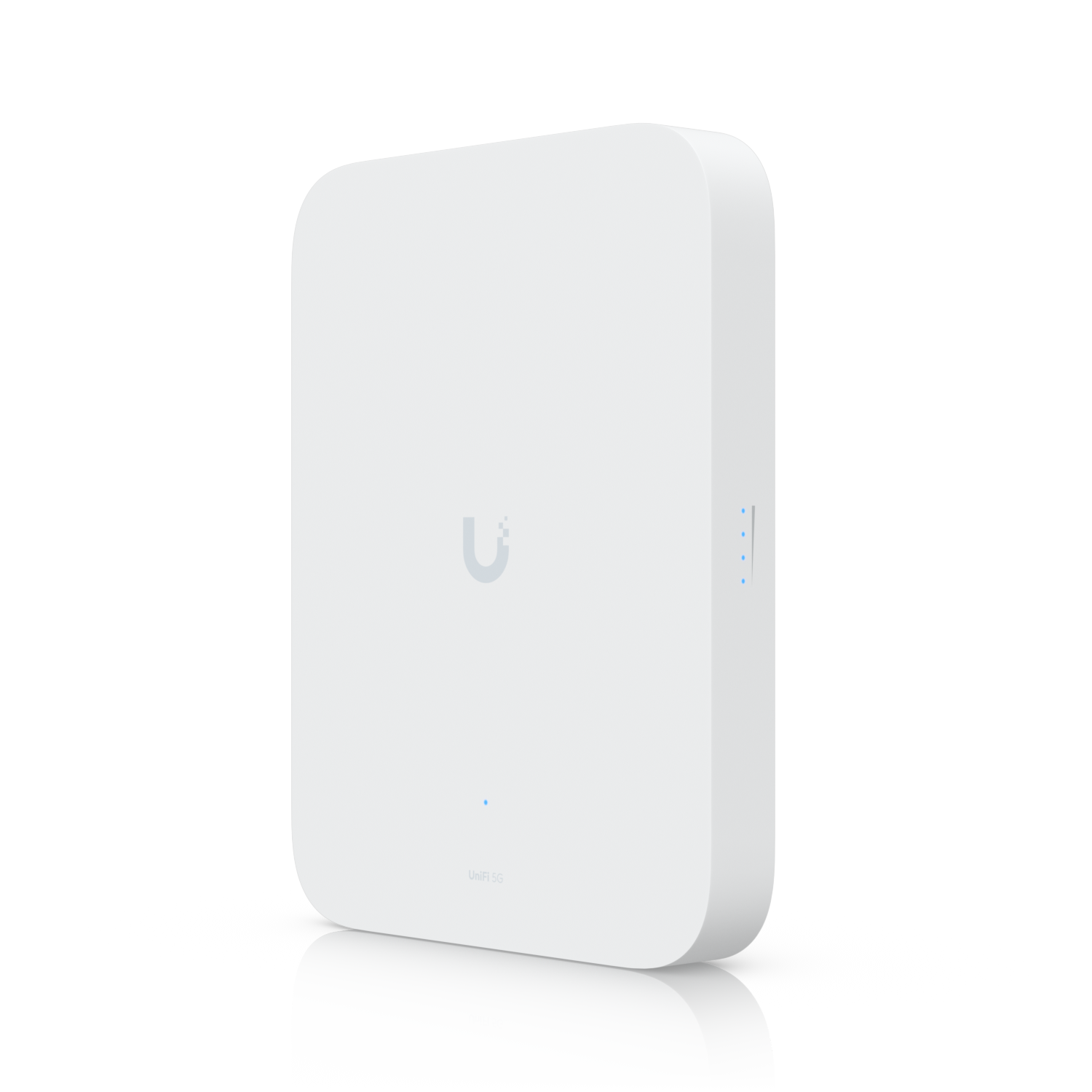

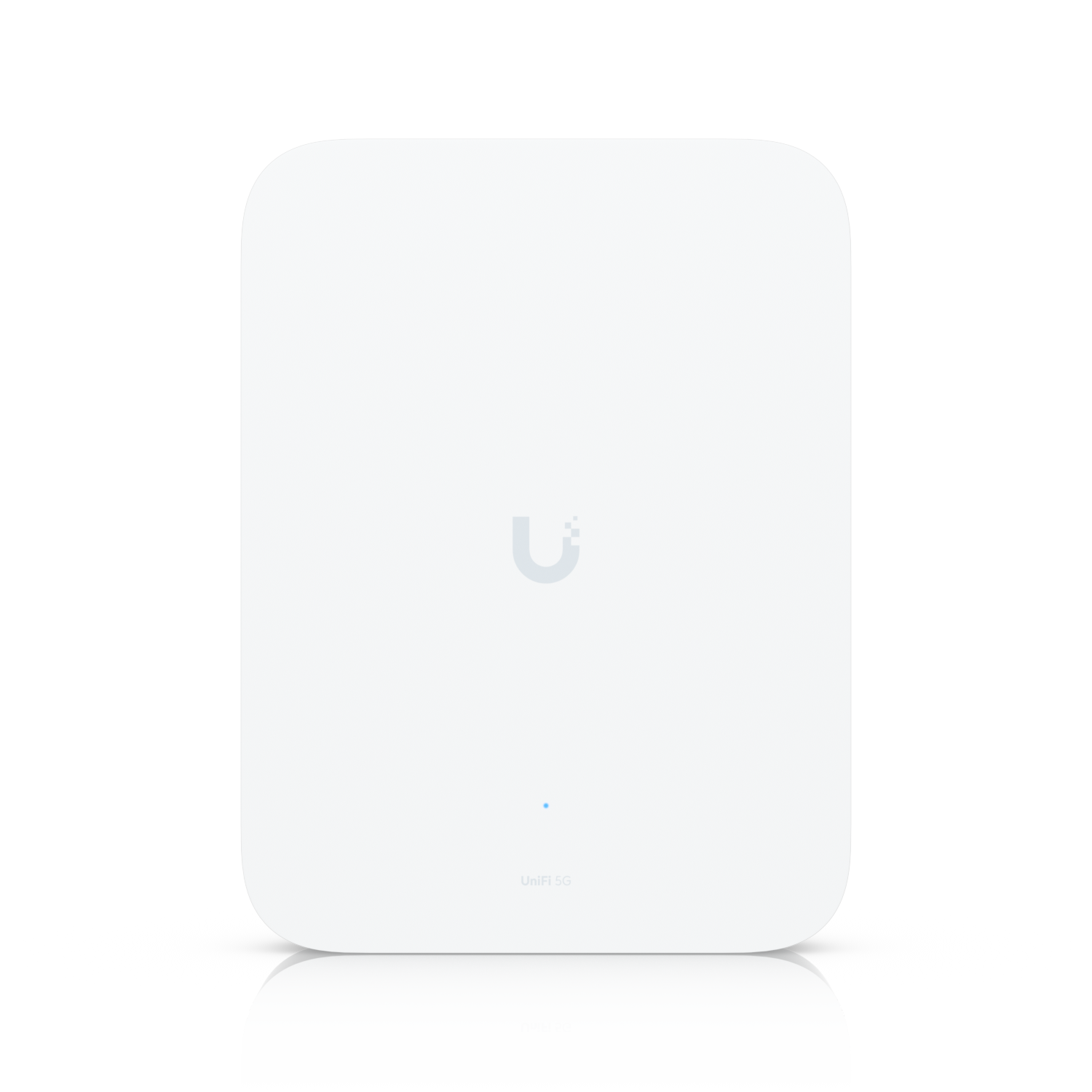

Ubiquiti U5G-Max-Outdoor UniFi 5G Max Outdoor
U5G-Max-Outdoor is an outdoor full-performance 5G modem for UniFi consoles and Cloud Gateways, with directional antennas, remote SIM support and dual SIM/eSIM failover.
Key Features
- Outdoor UniFi 5G modem with 3.4 Gbps 5G downlink capability
- 2.5 GbE RJ45 interface plus 5G NR and LTE radio
- Dual SIM/eSIM flexibility with Nano-SIM support
- PoE powered for clean outdoor installation
- Pole and wall mounts included
- IPX6 weatherproofing, with IP67 rating when used with cable-gland door kit
Technical Specifications
- Dimensions: Device: 220 x 165 x 66.9 mm; with mount: 220 x 165 x 122 mm
- Weight: Device: 1.2 kg; mount: 130 g
- Networking interface: (1) 2.5 GbE RJ45 port; 5G NR and LTE radio
- SIM: (1) Nano SIM; (1) Nano-SIM or eSIM
- Power method: PoE input
- Max. power consumption: 14.5W
- 5G throughput: Downlink 3.4 Gbps / uplink 560 Mbps, network dependent
- LTE throughput: Cat 20 downlink 1.8 Gbps / uplink 650 Mbps; Cat 19 downlink 1.6 Gbps / uplink 210 Mbps
- Antennas: Six embedded cellular antennas including two high-gain downlink antennas
- Mounting: Pole mount and wall mount included
- Weatherproofing: IPX6; IP67 with cable-gland door kit
- Operating temperature: -40 to 65 °C
- Certifications: FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile
Ideal Applications
- Outdoor cellular WAN failover
- Remote UniFi sites with stronger 5G placement needs
- Cloud Gateway internet backup where indoor signal is weak
