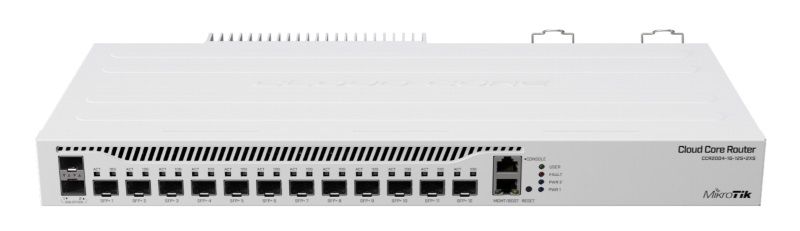

MikroTik CCR2004-1G-12S+2XS 1U RM, 12xSFP cage, 12xSFP+ cage, 4 Core 1.7GHz CPU, Dual P/S
MikroTik CCR2004-1G-12S+2XS 1U Cloud Core Router with 12 x 10G SFP+ and 2 x 25G SFP28 - 1U Cloud Core Router with a quad-core AL32400 ARM 64-bit CPU, 4 GB ECC RAM, 12 x 10G SFP+ cages, 2 x 25G SFP28 ports and dual AC power inputs.
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
MikroTik CCR2004-1G-12S+2XS 1U Cloud Core Router with 12 x 10G SFP+ and 2 x 25G SFP28
Product code: CCR2004-1G-12S+2XS
The MikroTik CCR2004-1G-12S+2XS is a 1U Cloud Core Router with a quad-core AL32400 ARM 64-bit CPU, 4 GB ECC RAM, 12 x 10G SFP+ cages, 2 x 25G SFP28 ports and dual AC power inputs.
Use CCR2004-1G-12S+2XS for Australian MikroTik deployments where reliable RouterOS control, official hardware specifications and local Streakwave supply matter.
High-density fibre routing
12 x 10G SFP+ cages plus 2 x 25G SFP28 ports provide flexible uplinks for aggregation and service-provider routing.
CCR2004 performance
Quad-core AL32400 ARM 64-bit CPU at 1.7 GHz with 4 GB ECC RAM for RouterOS v7 workloads.

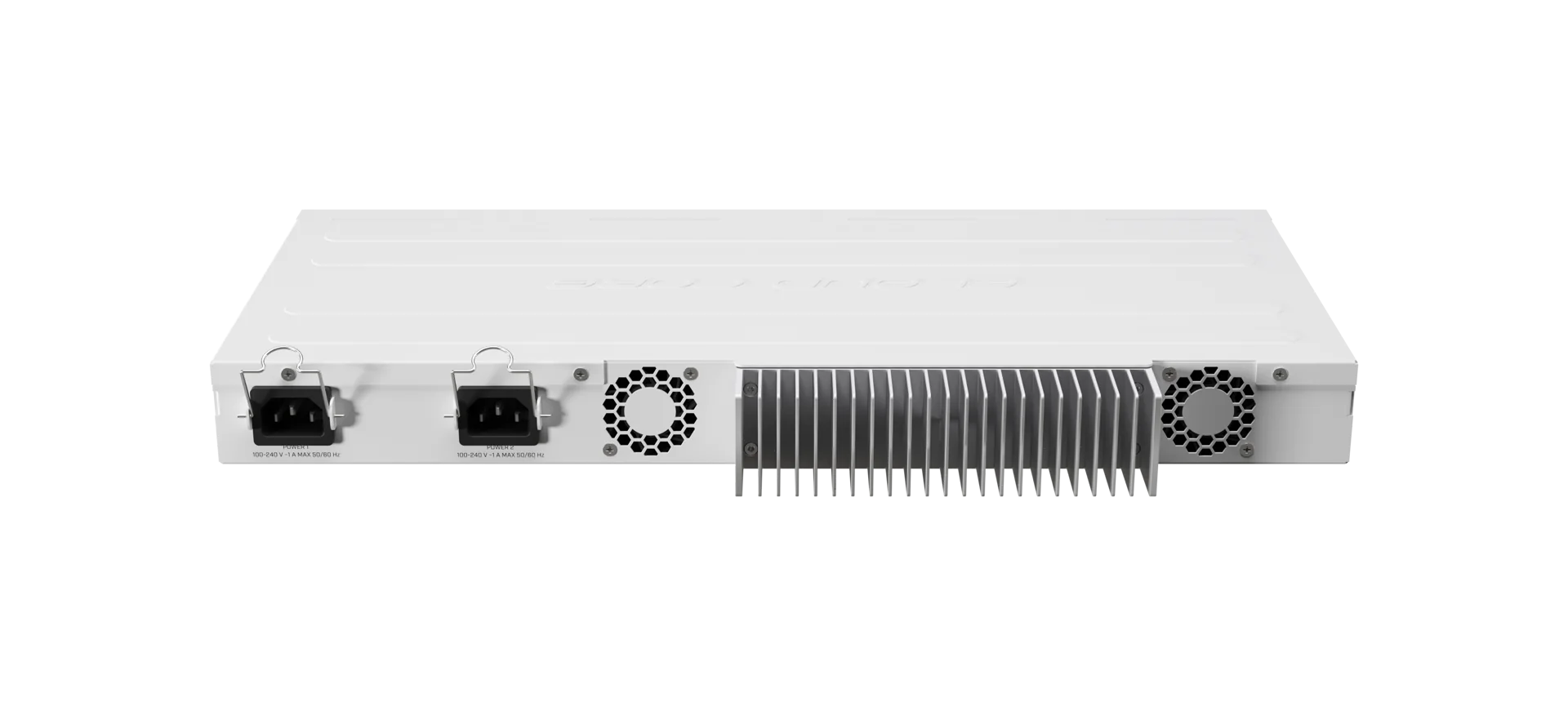

Dual AC power
Two 100-240 V AC inputs support resilient rack deployments.

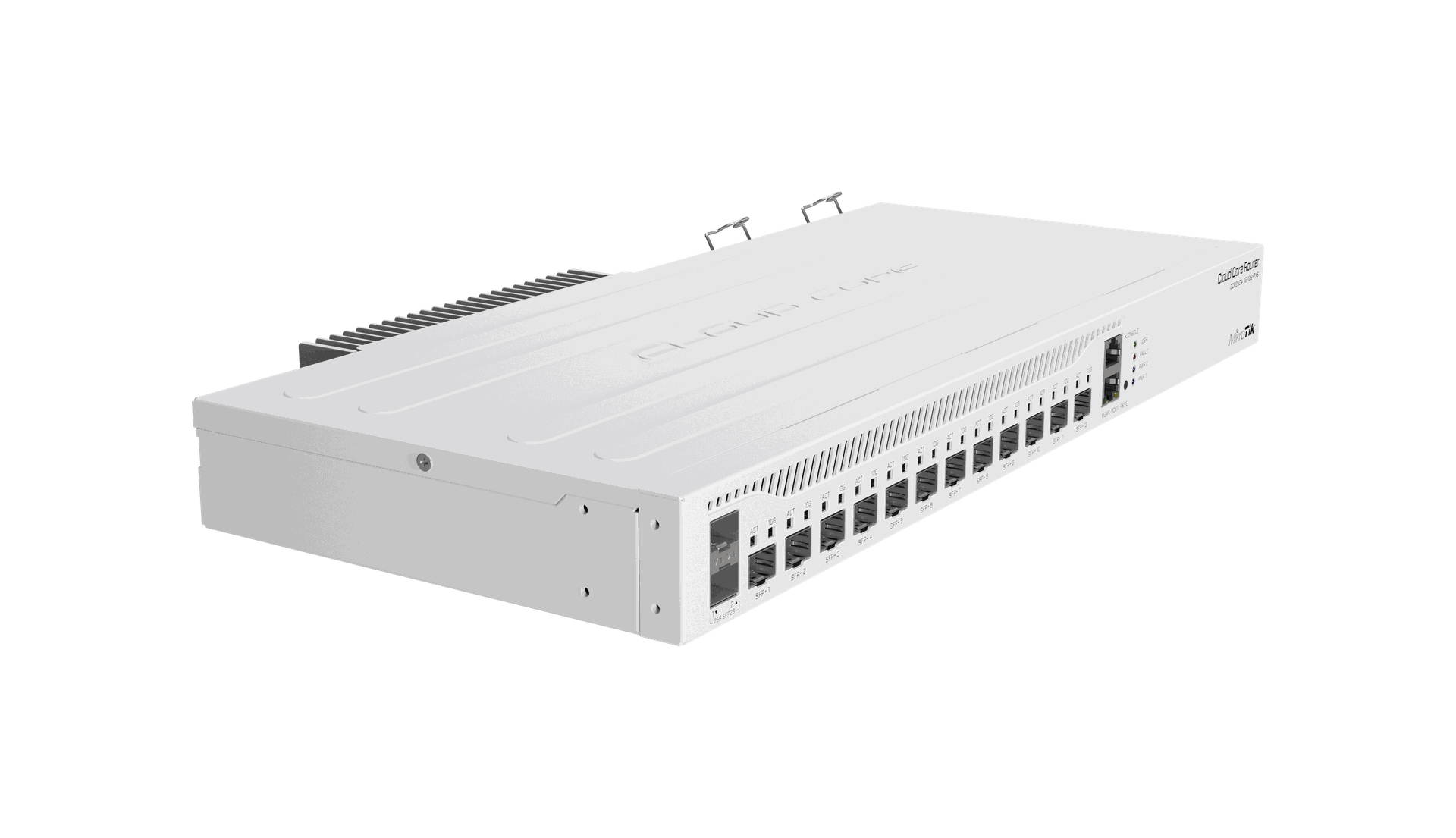

1U rackmount design
A compact 443 x 224 x 44 mm chassis with RJ45 serial console and active cooling.
Ideal applications
- ISP and WISP aggregation routers
- 10G and 25G fibre edge routing
- Data-centre and enterprise rack uplinks
- BGP, firewall, VLAN and RouterOS v7 policy routing
- Core upgrades where high SFP density is required
Key specifications
- Product code: CCR2004-1G-12S+2XS
- Architecture: ARM 64-bit
- CPU: AL32400, 4 cores, 1.7 GHz
- Memory: 4 GB ECC RAM
- Storage: 128 MB NAND
- Operating system: RouterOS v7, license level 6
- Ethernet: 1 x 10/100/1000 Ethernet port
- Fibre: 12 x SFP+ ports and 2 x 25G SFP28 ports
- Power: Dual 100-240 V AC inputs
- Max power consumption: 60 W, 31 W without attachments
- Cooling: 2 fans
- Operating temperature: -20°C to 60°C
Why choose the CCR2004-1G-12S+2XS?
CCR2004-1G-12S+2XS gives MikroTik RouterOS users a fibre-dense routing platform with 10G and 25G interfaces, making it a strong fit for aggregation, peering and high-throughput routing.
Frequently asked questions
How many SFP+ ports does CCR2004-1G-12S+2XS have?
It has 12 x 10G SFP+ ports.
Does CCR2004-1G-12S+2XS include 25G ports?
Yes. MikroTik lists 2 x 25G SFP28 ports.
What CPU does CCR2004-1G-12S+2XS use?
It uses an AL32400 quad-core ARM 64-bit CPU at 1.7 GHz.
Does it run RouterOS v7?
Yes. The official specifications list RouterOS v7 with license level 6.
Is it rackmount?
Yes. It is a 1U rackmount Cloud Core Router.
